Kreg Tool KLTJ100 MortiseMate Loose Tenon Jig

SKU
KLTJ100
$299.00
In Stock

The Kreg MortiseMate Loose Tenon Jig will change the way we think about traditional wood joinery. This innovative tool allows we to create loose tenon joints with ease, combining the precision of a router with the simplicity of a drill. Featuring an auto-indexing step-down mechanism, micro adjustment screws, and integrated mini work surface, the MortiseMate makes it easy to create professional-quality hidden joints with just a drill — no router needed.

The MortiseMate’s exclusive auto-indexing step-down mechanism enables precise mortise cutting with just a drill, eliminating the need for complex setups. Each pass automatically lowers the cutter by 1/16"", ensuring flawless, accurate joints every time.

Achieve the perfect fit with the MortiseMate’s micro adjustment screws, allowing we to customize mortise width for tight or loose tenon fits.

The integrated mini work surface allows for quick, easy clamping with trigger-style clamps, making it ideal for both permanent setups and mobile applications.

With the MortiseMate, we can effortlessly take on woodworking projects that demand the highest standards of precision and strength, all while saving time and effort. Elevate our craft with a tool that redefines what’s possible in joinery.

Includes carbide-tipped MortiseMate 6 mm Mortising Cutter; 8 mm and 10 mm cutters can be purchased separately.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerKreg Tool
ConditionNew
UPC00647096813246
Features
  • Cut mortises (loose tenon joinery) with just a drill
  • Auto-indexing step-down mechanism lowers cutter in 1/16" increments
  • Micro adjustment screws for customizable width of mortises
  • Mini work surface makes setup simple
  • Customizable depth and width of mortises
  • Accurate and precise with laser-etched markings on bit and jig
  • For workpieces 1/2" – 1 1/2" thick
  • Quick setup for panel and 90-degree joints
  • Includes carbide-tipped 6 mm MortiseMate Mortising Cutter (8 mm and 10 mm cutters also available)
  • Construction
  • Professional-grade stainless steel and precision-machined anodized aluminum jig body
  • Plywood mini work surface
  • Compatibility
  • MortiseMate Mortising Cutters
  • MortiseMate Loose Tenons
Includes

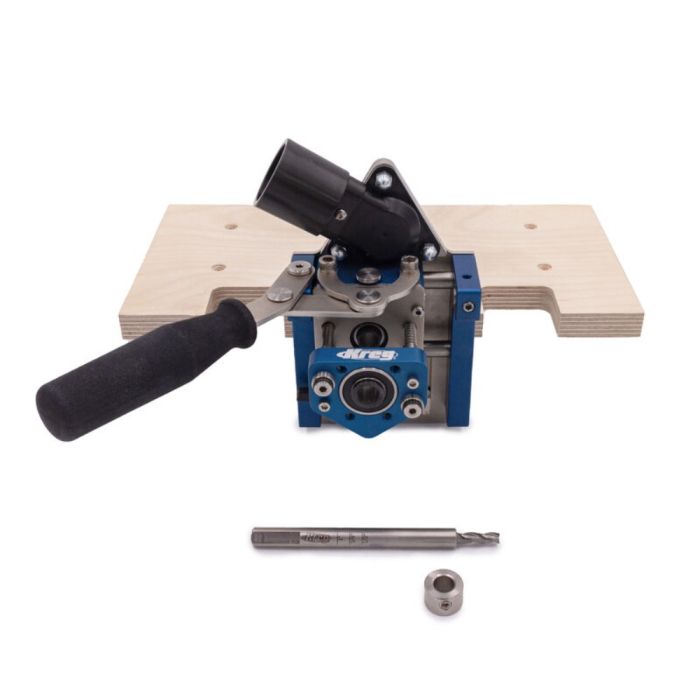

  • MortiseMate Loose Tenon Jig
  • Carbide-tipped MortiseMate 6 mm Mortising Cutter with Stop Collar
  • Mini Work Surface
  • Dust Collection Adapter (for 1 1/4" vacuum hoses)
  • Hex Wrenches (5/32", 1/8", 3/16")
  • Owner's Manual
Warranty3 years
TypeLoose Tenon Jig
Cutting DepthAdjustable in 1/16" increments
Maximum Cutting DepthUp to 3/4" with a 6 mm Cutter / Up to 1" with 8 mm and 10 mm Cutters
Workpiece Thickness1/2" to 1 1/2"
