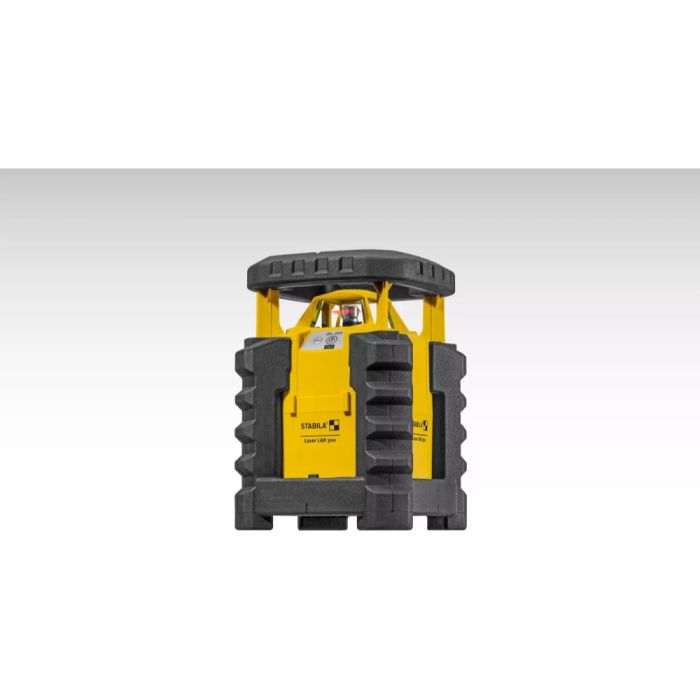

If we need accuracy, toughness and efficiency when it comes to measuring, then the LAR 300 is the ideal solution. This high-quality German-made product allows you to level horizontally with precision, especially outdoors. The laser is very easy to use and, together with the REC 300 Digital receiver, delivers rapid, reliable results within a range of up to 800 m. Thanks to the integrated protection systems, nothing can stop this laser from doing its job – even if it is dropped or exposed to rain or dust. Typically STABILA – because lasting precision is the crucial factor.
WARNING: Proposition 65 Warning for California Residents View Details
Fully automatic motor-driven rotation laser for horizontal applications – ready for use straight away thanks to fast self-levelling within 10 seconds. Quality and precision
Extremely tough thanks to the Stabila Protector system – perfect protection, even when the laser is dropped from a tripod at a height of up to 1.80 m: just set up the tripod again, switch on and carry on measuring
Waterproof and dustproof in accordance with protection class IP 65
Resistant to heat and cold from -10°C to +60°C
Exceptionally easy to operate at just the touch of a button
Large working area with set receiver – up to 800 m diameter
Correct heights quickly – direct reading of deviations from the reference plane on the receiver display with millimetre accuracy
Receiver with visual and acoustic guidance as well as two displays
5/8" thread for attaching to a tripod
Carrying case for easy transport
Compatible with commercially available machine controllers
Type
Laser Level Kit
Laser Class
2
Output
< 1 mW
Laser Wavelength
635 nm
Self-Levelling Range +/-
5 Deg
Levelling Accuracy +/-
0.10 mm/m
Diameter of Working Area for Set Receiver
800 m
Operating Life
80 h
Battery Type
D
Protection Class
IP 65
Tripod Connection
5/8"
Application
In Bricklaying – Creating the Levelling Layer, In Reinforced Concrete Construction – Concreting Foundations, In Carpentry and Wood Construction – Adjusting the Height of the Ring Beam, In Civil Engineering and Pipeline Construction – for Example, Trenching, In Gardening and Landscaping Work – Laying Out Garden Areas, Paths and Paving
