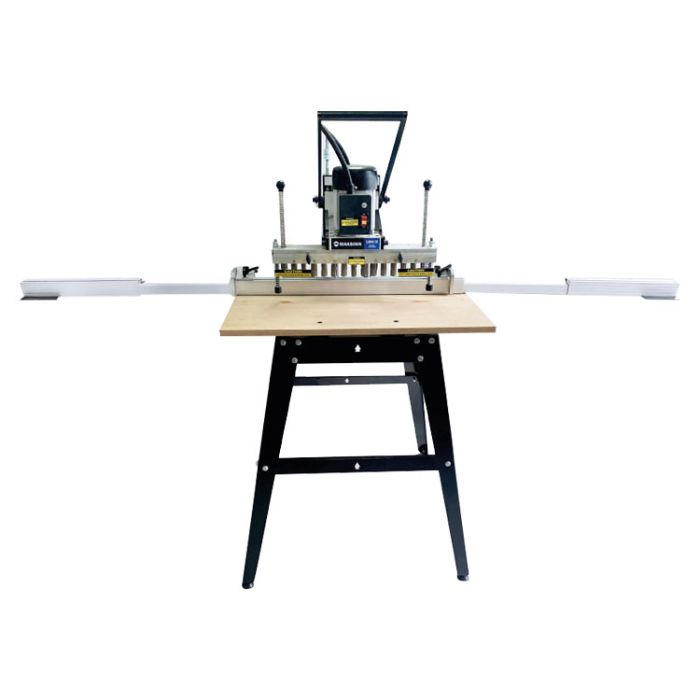

Maksiwa LBM.13 31" x 15-1/2" Manual Line Boring Machine

SKU
LBM.13
$2,499.00
Ships direct from manufacturer ?

Our line boring machines were designed to last, loaded with features such as the lubricated aluminum head, heat treated steel gears, 1 HP motor and stainless-steel spindles. These machines offer carpenters and woodworkers the opportunity to work with the most innovative bench top boring machine currently on the market.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerMaksiwa
ConditionNew
Features
  • Step and repeat indexing pins (left and right)
  • Adjustable X and Y axis flip stops
  • Spring Loaded Hold Downs: Perfect to fix the workpieces
Includes
  • Drill Bits Set
PDFs
Video

Horsepower1 HP
Motor Phase1 Ph
Speed (RPM)3,450 RPM
Warranty2 Years
Type Line Boring Machine
Voltage 120 V
Table Size 31" x 15 1/2"
Amperage 10 Amps
Floor to Table Height 34"
Maximum Depth of Stroke 2.5"
Length of Fence 61.5 - 91.5"
Fence Stops 2
Number of Spindles 13 (6 Left and 7 Right)
Distance Between Spindle Centers 32 mm
Chuck Inner Diameter 10 mm
Approximate Air Pressure Required 90 PSI
