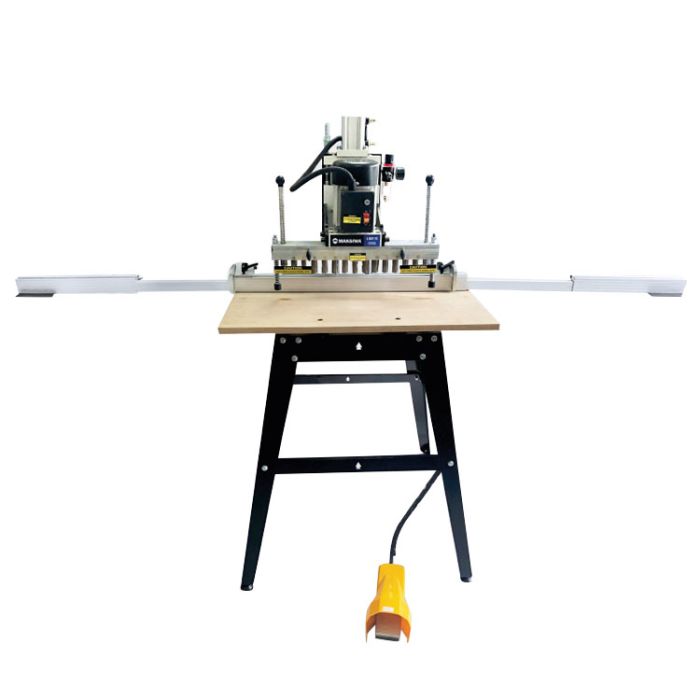

Maksiwa LBP.13 Pneumatic Line Boring Machine

SKU
LBP.13
$2,999.00
Ships direct from manufacturer ?
Line Boring Machines were designed to last, loaded with features such as the Lubricated Aluminum Head, Heat treated Steel Gears, 1 HP motor and Stainless Steel Spindles. These machines offer carpenters and woodworkers the opportunity to work with the most innovative bench top boring machine currently on the market.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerMaksiwa
ConditionNew
Features
  • Air regulator and filter
  • Back fence scale position indicator
  • Adjustable X and Y axis flip stop
  • Step and repeat operation indexing pins (left and right)
  • Spring loaded hold downs
  • Depth adjustable
Includes
  • Drill Bit Set
  • Indexing Pins Step and Repeat Indexing Pins (Left and Right)
  • Adjustable X and Y Axis Flip Stops
  • Spring Loaded Hold Downs Perfect to Fix The Workpieces
PDFs
Horsepower1 HP
Motor Phase1 Ph
Speed (RPM)3,450 RPM
Warranty2 Year
Voltage110 /220 V
Amperage10 /5 A
Table Dimensions (in.)31 x 15 1/2"
Fence Stop2
Maximum Expandable Fence Giude89"
Table Height34"
Maximum Depth of Stroke2.5"
Maximum Fence Length91.5"
Minimum Fence Length61.5"
# of Spindles(Left)6
# of Spindles(Right)7
Distance Between Spindle Center32 mm
