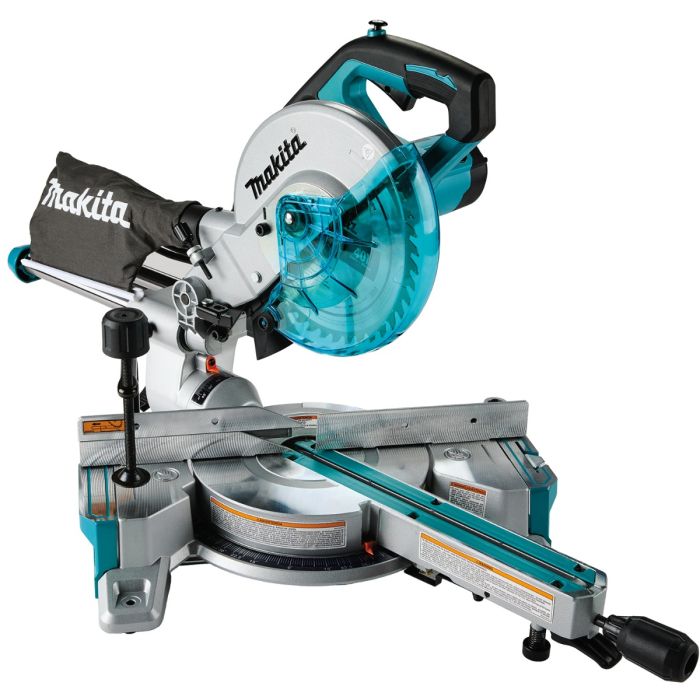

Makita LS0816F, 8-1/2" Slide Compound Miter Saw

SKU
LS0816F
$544.00
Ships direct from manufacturer ?

The Makita 8-1/2” Slide Compound Miter Saw (LS0816F) features a compact design with low weight of only 30.6 lbs. for job site portability. It is ideal for baseboard and crown molding installation, finish carpenters, cabinet and furniture makers, wood floor installers, deck builders, general construction, and more. The powerful 10.5 AMP direct drive motor requires less maintenance and delivers 5,000 RPM.

The 8-1/2” Slide Compound Miter Saw can perform miters including 0°- 47° left and 0°- 47° right, with positive stops at 0°, 15°, 22.5°, 31.6°, 45° and 47° (left and right). It can also perform cuts up to 12” at 90° and 8-1/2” at 45°. The LS0816F features a linear ball bearing system that is engineered to deliver "dead-on" accurate cuts. It also features dual rear handle bevel lock that is easily accessible and adjusts 0°- 47° (left) and 0°- 2° (right) with positive stops at 0° and 45° (left).

It features a large precision machined aluminum base that supports the material for more efficient cutting, an electric brake for maximum productivity and features a see-through blade guard system for greater visibility of the line of cut.

Convenience features include a soft start feature for smooth start-ups, a built-in L.E.D. light that illuminates the line of cut for increased accuracy, an exclusive 2-1/2" tall fence system for increased vertical cutting capacity, as well as an ergonomic rubberized D-handle design for better fit and added comfort. It includes extension wings for supporting long work pieces.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerMakita
ConditionNew
UPC197050001627
Features
  • Accuracy: Large precision machined aluminum base supports material for more efficient cutting
  • Powerful 10.5 AMP direct drive motor requires less maintenance and delivers 5,000 RPM
  • Miters 0°- 47° left and 0°- 47° right, with positive stops at 0°, 15°, 22.5°, 31.6°, 45° and 47° (left and right)
  • Compact and lightweight (30.6 lbs.) for job site portability
  • Cuts up to 12” at 90° and 8-1/2” at 45°
  • Linear ball bearing system engineered to deliver "dead-on" accurate cuts
  • Dual rear handle bevel lock is easily accessible and adjusts 0°- 47° (left) and 0°- 2° (right) with positive stops at 0° and 45° (left)
  • Soft start feature for smooth start-ups
  • Built-in L.E.D. light illuminates the line of cut for increased accuracy
  • Exclusive 2-1/2" tall fence system for increased vertical cutting capacity
  • Ergonomic rubberized D-handle design for better fit and added comfort
  • Large precision machined aluminum base supports material for more efficient cutting
  • Electric brake for maximum productivity
  • See-through blade guard system for greater visibility of the line of cut
  • Dust port for attaching included dust bag; also connects to a Dust Extractor/Vacuum (sold separately) for more efficient dust collection
  • Includes extension wings for supporting long work pieces
  • Ideal for baseboard and crown molding installation, finish carpenters, cabinet and furniture makers, wood floor installers, deck builders, general construction and more
Includes
  • (1) Vertical Vise, LS0816F (JM00000432)
  • (1) Dust Bag, LS0816F (JM00000535)
  • (1) 8-1/2" TCT Saw Blade
  • (1) Hex Wrench, 6mm
Diameter8 1/2"
Electric BrakeNo
Variable speedNo
TypeMiter Saw
Arbor Size5/8"
Maximum Cutting Capacity (Miter 90 Deg)2-9/16" x 12"
Maximum Cutting Capacity (Miter 45 Deg, L/R)2-9/16" x 8-1/2"
No Load Speed5,000 RPM
Dimensions (L x W x H)27-3/4" x 18-3/4" x 20-1/2"
AMPS10.5
Weight30.6 lbs.
90Deg Crosscut Capacity12"
Maximum Cutting Capacity (at 45 Deg)8-1/2"
Maximum Cutting Capacity (90 Deg)12"
Cord Length6.6'
Electric BrakeYes
LED LightYes
Soft StartYes
Bench & Stationary Tool TypeSlide Miter Saw
Corded or CordlessCorded
