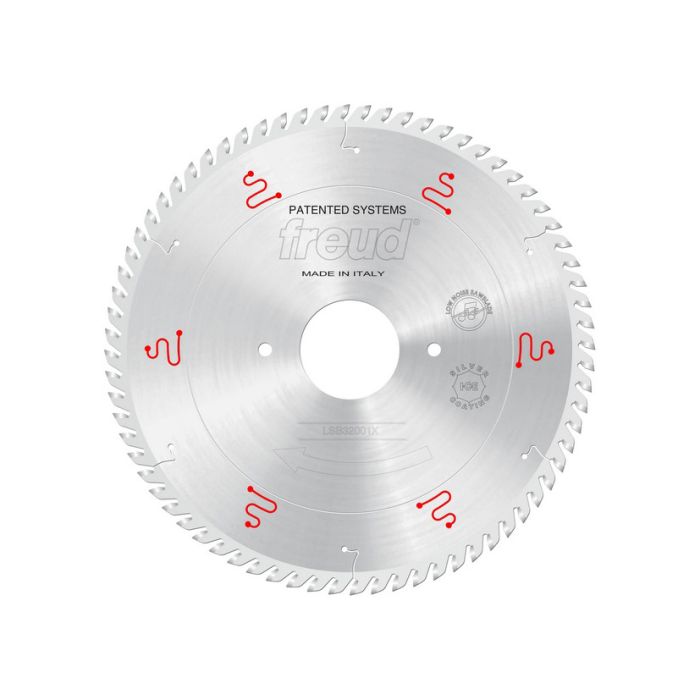

Freud LSB46001X Panel Sizing Circular Saw Blade, 460 mm, Carbide, Silver I.C.E. Coated, 72 TCG

SKU

LSB46001X

$255.47

Ships direct from manufacturer

Notify me when the price drops

Product Description
Features/Specifications
Reviews

Product Description

Freud’s innovative X-series of LSB Panel Blades offer ground-breaking design to provide superior performance, extremely precise cuts, and virtually no run out. These X-series Panel Saw Blades deliver 2X the life of existing LSB saw blades.

WARNING: Proposition 65 Warning for California Residents View Details

Features/Specifications

More Information
Manufacturer	Freud
Condition	New
Features	Extended (X) Series incorporates unmatched accuracy and precise design enabling manufacturers to increase efficiency, reduce down time, and lower tooling cost Silver I.C.E. (Industrial Cooling Element) Coating leaves a slick surface on the blade body to reduce heat and drag, enabling the blade to last longer Exclusive TiCo Hi-Density Carbide designed and manufactured by Freud specifically for each cutting application to maximize cutting life and material finish in a variety of materials Anti-Vibration design reduces vibration above and beyond any other blade resulting in superior performance
Application	For Chipboard/MDF Laminated with Melamine/Plastic Materials Cutting
Arbor Size	1 3/16"
Blade Diameter	18 1/8"
Blade Finish	Silver I.C.E. Coated
Blade Material	Carbide
Rake Angle	10 Deg
Blade Thickness (Kerf)	3/16"
Tooth Grind	Triple Chip Grind (TCG)
Blade Type	Panel Sizing
Number of Teeth	72
Pinholes	34378
Suitable for Use With	Horizontal Panel Sizing with Scorer, FI Machine
Teeth Per Inch	72
Warranty	Limited Lifetime

Blade thickness (Kerf)	4.4 mm
Plate	3.2 mm
