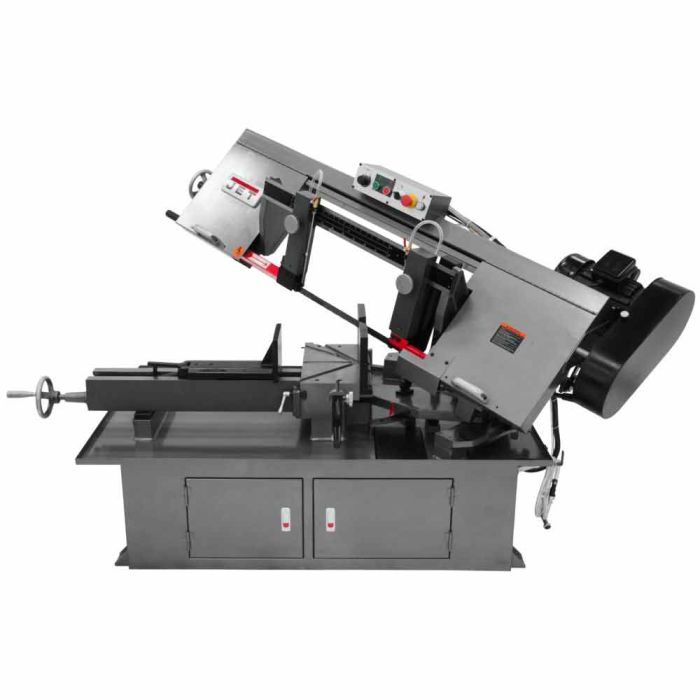

Jet 413411 MBS-1018-1 Dual Mitering Horizontal Band Saw, 2 HP, 230 V

SKU

JT9-413411

$10,449.00

Ships direct from manufacturer

Band Saw, Dual Mitering, Horizontal, 14-1/4 inch Wheel Diameter, 36 inch Width, 79 inch Length, 46 inch Height, 7-5/8 inch Width, 17-1/2 inch Length, 22-3/4 inch Height Table, 1 inch Blade Width, 144 inch Blade Length, 0.032 inch Blade Thickness, 10 inch Width, 18 inch Depth Cutting Capacity, Cast Iron Blade Wheel, Steel Bow, Welded Steel Plate Stand Material, 230 V Voltage, 13.5 A FLA, 36 A Starting, 8 A Running No Load Current, 2 HP Power, 1 Phase, 50/125/200/275 SFPM Blade, 1720 RPM Motor Speed, 10 inch Round @ 90 Deg, 10 inch Round @ 45 Deg, 10 inch x 17 inch Rectangle @ 90 Deg, 10 inch x 12 inch Rectangle @ 45 Deg Table/Blade Tilt, 45 Deg Right, 60 Deg Left Head Movement Miter Gauge Positive Stops, 2 Years Warranty, Includes Quick Action Vise on 10 inch Saws, Blade Tension Gauge, Coolant System, Adjustable Material Stop, Intergrated Ressurized Wash Hose for Easy Machine Clean Up, 1144 lb Weight, CSA/cUS Certified, For Quick Angle Cuts

Notify me when the price drops

Product Description
Features/Specifications
Reviews

Product Description

Jet dual mitering horizontal bandsaws unique design head dual miters both left and right for quick angle cuts.

WARNING: Proposition 65 Warning for California Residents View Details

Features/Specifications

More Information
Manufacturer	Jet
Condition	New
Features	Heavy duty construction reduces vibration and deflection Built in, self propelled blade brush prevents chip build up in blade guides Blade tension gauge helps to ensure the blade is in the correct cutting position Magnetic starter for low voltage and lost phase protection Automatic blade breakage sensor detects accidental breakage and interrupts the power Power switch with safety key provents accidental start up CSA/CUS: Folloing strict guidelines and electrical requirements, this JET saw is CSA/CUS certifield Blade is fully guarded for Operator safety Automatic shut off switch stops the sawing process Hydraulic downfeed control is easily adjusted enabling feed rates to evolve with variable types of materials Intergrated ressurized wash hose for easy machine clean up Quick action vise on 10" saws Standard equipement Quick action vise on 10" saws Blade Tension Gauge Coolant System Adjustable material stop Intergrated ressurized wash hose for easy machine clean up
Includes	Quick Action Vise on 10 inch Saws, Blade Tension Gauge, Coolant System, Adjustable Material Stop, Intergrated Ressurized Wash Hose for Easy Machine Clean Up
PDFs	413410_OperatorManual.pdf
Application	For Quick Angle Cuts
Horsepower	2 HP
Stationary type	Dual Mitering, Horizontal
Warranty	2 Years

Type	Dual Mitering, Horizontal
Wheel Diameter	14-1/4 inch
Width	36 inch
Length	79 inch
Height	46 inch
Table Size	7-5/8 inch Width, 17-1/2 inch Length, 22-3/4 inch Height
Blade Width	1 inch
Blade Length	144 inch
Blade Thickness	0.032 inch
Cutting Capacity	10 inch Width, 18 inch Depth
Material	Cast Iron Blade Wheel, Steel Bow, Welded Steel Plate Stand
Voltage Rating	230 V
Current Rating	13.5 A FLA, 36 A Starting, 8 A Running No Load
No. of Phase	1
Speed	50/125/200/275 SFPM Blade, 1720 RPM Motor
Table/Blade Tilt	10 inch Round @ 90 Deg, 10 inch Round @ 45 Deg, 10 inch x 17 inch Rectangle @ 90 Deg, 10 inch x 12 inch Rectangle @ 45 Deg
Miter Gauge Positive Stops	45 Deg Right, 60 Deg Left Head Movement
Standard	CSA/cUS Certified
