The heart of the machine is a shaper spindle which holds all five cutters needed to produce a door. The spindle is powered by a 10 HP motor for smooth cuts and is quickly positioned from the front of the machine with a dial. The turret system insures complete accuracy without test cuts and the pneumatically controlled spindle height is quickly set. The 2 axis sliding table rides on linear bearings in all directions and includes a pneumatic hold-down clamp for quick setup. The pneumatic EZ fence quickly positions stock for the next cut. A large diameter tracer bearing provides perfect control for straight and curved template following.
Compressed Air Requirement: 90 PSI 1 CFM
Dust Port: 5″
Maximum Arch Height: 2 Standard
Maximum Material Thickness: 1-¼″
Maximum Arch Width: 24″
Weight: 1500 lbs
*Carbide insert tooling sold separately
WARNING: Proposition 65 Warning for California Residents View Details

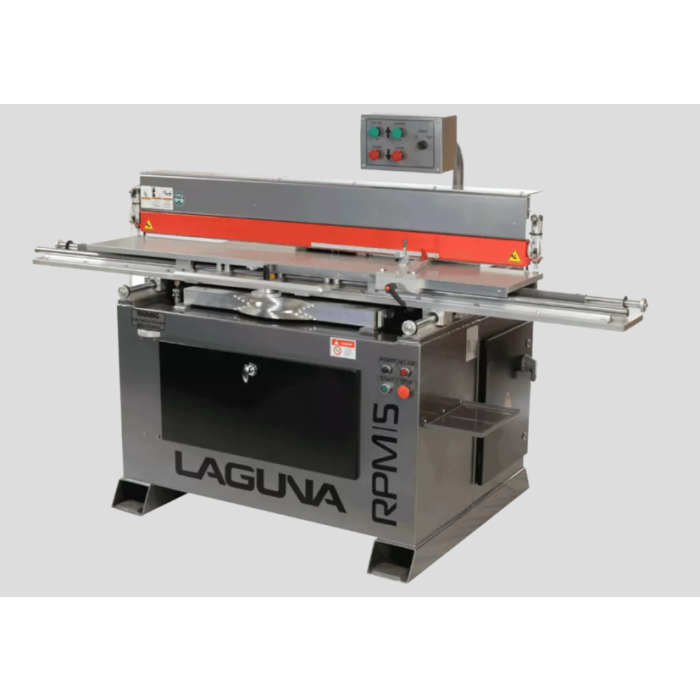

Laguna is proud to introduce our latest Industrial Series machine, the Raised Panel Master 5. This machine is designed to allow a single operator to produce a complete cabinet door in less than 2 minutes. The single-piece welded steel frame provides the ultimate support for chatter-free work.
