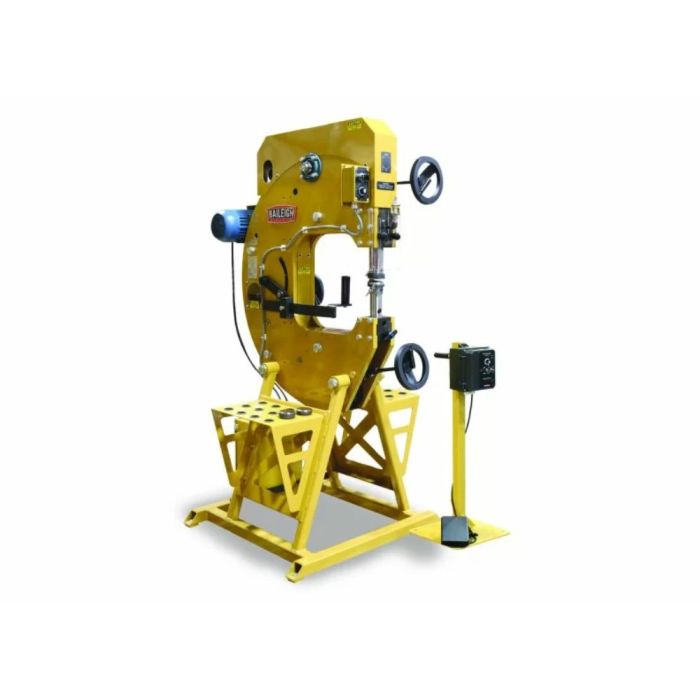

Baileigh Industrial BA9-MDL-MH19 MH-19, 220V 1Ph Multi-Function Power Hammer

SKU
BA9-MDL-MH19
$29,999.00
Ships direct from manufacturer ?

Our best-selling power hammer, the Baileigh MH-19 is the only metal-shaping tool you’ll need. Built from 1”-thick steel, this USA-made machine can drastically shape panels, planish, and more.

ADD-ON OPTIONS:

You can bolt a planishing hammer attachment to the side of the machine for when you need to finish a piece.

Robust English wheel kit can bring even more versatility to the machine.

Patent #7,810,368

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerBaileigh Industrial
ConditionNew
UPC19907529064
Features
  • Multi-function power hammer
  • 16 Ga mild steel capacity
  • 19" throat depth
  • Variable speed: 0 to 1500 bpm
  • 19” throat depth.
  • 16 Ga mild steel capacity.
  • Variable speed from 0 to 1,500 beats per minute.
  • Switch between rigid and non-rigid modes to suit your project.
  • Pullmax-style mode for short stroke shaping and flanging.
  • Spring-slapping Yoder-style mode for aggressive shrinking and planishing.
  • On-the-fly stroke adjustments range from .0175” to .550”.
  • Runs on 220-volt single-phase power.
  • Includes starter shrinking and forming dies.
  • Die sets are available for shrinking, stretching, flanging, and making louvers. You can also create custom dies for the machine.
Warranty1 Year
TypePower Hammer
Aluminum Capacity (Ga)12 ga
Input Power110 / 220V, 1-Ph
Mild Steel Capacity (Ga)16 ga
Model NumberMH-19
Range of Speeds0 - 1500 Beats / Minute
Stroke Length0.177" - 0.550"
Throat Depth19"
Tooling Height Adjustment2"
Weight1300 lbs
