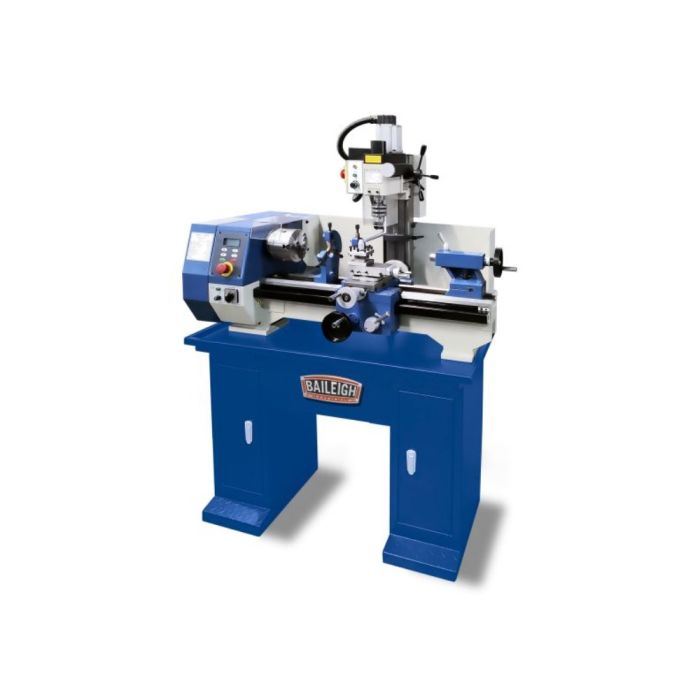

Baileigh Industrial BA9-1228216 MLD-1022, 110V Mill Lathe and Drill Combo Ships direct from manufacturer
This combo mill drill lathe is ideal for small shops. Sturdily built with an MT-2 taper, the MLD-1022 offers all the features you’d want, including a DRO and independent motors.
Purchase this lathe milling machine combo from Baileigh Industrial today
Questions? Not sure what’s the right model for you? Call us at 1-920-654-5815 and ask about our mill lathe combo.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Baileigh Industrial Condition New UPC 19907766858 Features Includes stand 2 independent motors Lathe DRO 50 to 2,250 rpm lathe speed Runs on 110 volts. Just plug it into a standard outlet. 2 independent 1 hp motors (for the lathe and the mill) reduce wear and tear and give this combination machine a longer life. Adjustable lathe speed from 50 to 2,250 rpm with a DRO for precise cutting. Steady rest and follow rest minimize vibrations for more accurate results. Comes with 3-jaw and 4-jaw chucks to hold both square and rounded materials. Built with robust MT-4 spindle taper on lathe & MT-2 on mill. Yoke on stationary mill allows you to drill as on a traditional drill press. Includes sheet metal stand, but you can also use this mill drill lathe on your benchtop. Precision-ground and hardened ways ensure long life and years of high-quality machining. Combo lathe mill drill covered by a 1-year parts warranty. Horsepower 1 HP Warranty 1 Year
Type Mill Lathe and Drill Combo Cross Slide Travel 4.5" Cross Slide Travel 4.5" Distance Between Centers 22" Distance Spindle to Column (Max.) 6.5" Input Power 120V Model Number MLD-1022 Range of Inch Threads (TPI) (Max.) 56 TPI Range of Inch Threads (TPI) (Min.) 8 TPI Range of Longitudinal Feeds (IPR) (Max.) 0.008 IPR Range of Longitudinal Feeds (IPR) (Min.) 0.003 IPR Range of Metric Threads (Max.) 3.5 mm Range of Metric Threads (Min.) 0.4 mm Speed Range (RPM) 50 - 2250 RPM Spindle Bore 1.1" Spindle Distance to Table (Max.) 8.375" Spindle Taper MT4 Swing Over Bed 9.75" Swing Over Cross Slide 5.7" Tailstock Spindle Travel 2" Weight 450 lbs Width of Bed 5.3"
