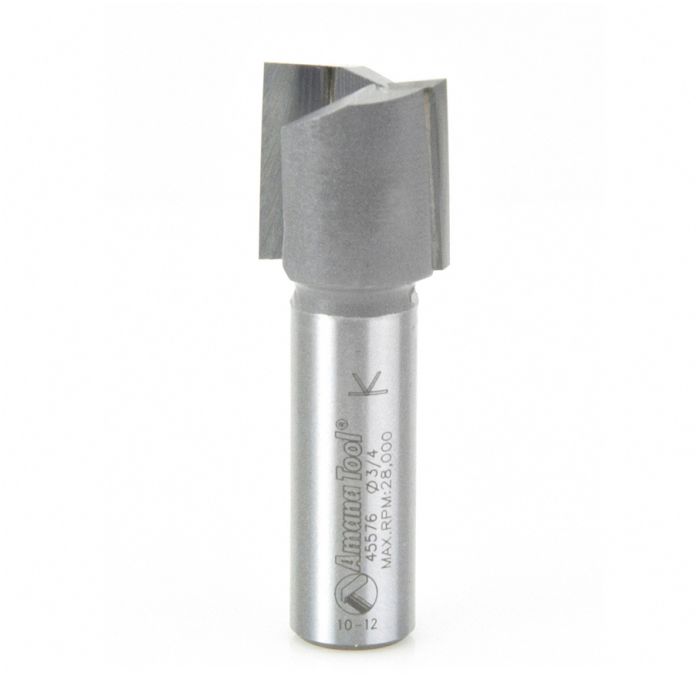

Amana Tool 45576 3/4" x 2-1/4" Carbide Tipped Mortising Router Bit
SKU
45576
$28.81
Ships direct from manufacturer ?
Intended for hinge mortising, this bit is an excellent choice for cutting laps and tenons as well. The sides and bottom of the cut are exceptionally smooth. The down-shear design reduces chipping along the top edge of the cut, especially in laminates, veneered plywood and MDF. The large gullet between the cutting edges provides excellent chip clearance.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868545576 |
| PDFs | |
| Application | For Laminates, MDF, Plywood |
| Type | Router Bit |
| Ball Bearing | No |
| Cutter Height(B) | 3/4" |
| Cutting Diameter(D) | 3/4" |
| Diameter(D) | 3/4" |
| Flutes | 2 |
| Length(L) | 2 1/4" |
| Material | Carbide Tip |
| Overall Length(L) | 2 1/4" |
| RPM | 28,000 RPM |
| Shank | 1/2" |
| Shank(d) | 1/2" |
| Tool No. | 45576 |
| Diameter(D) | 3/4" |
|---|---|
| Cutter Height(B) | 3/4" |
| Shank(d) | 1/2" |
| Overall Length(L) | 2-1/4" |
| Flutes | 2 |
| Max. RPM | 28,000 RPM |
