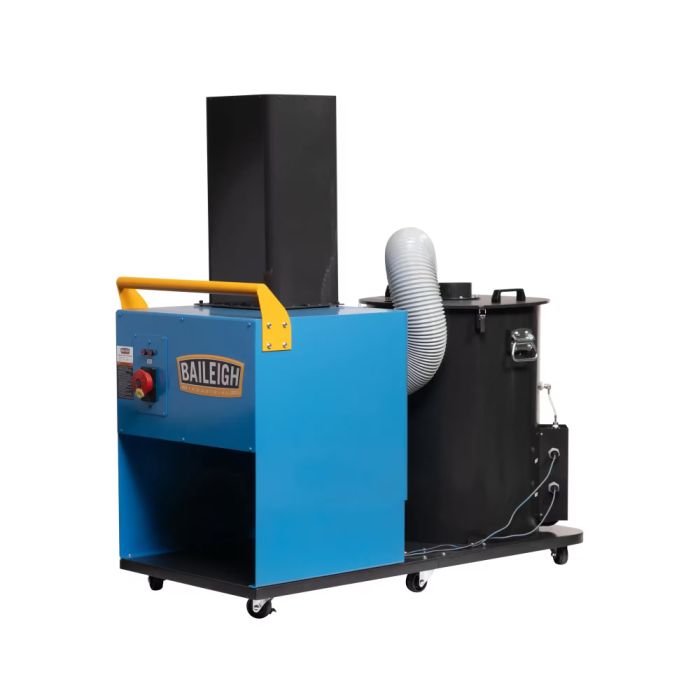

Baileigh Industrial BA1-12451, MWDC-550H 5HP 460V 3PH Wet Dust Collector
The Baileigh MWDC-550H is the 460V/3-phase version of Baileigh’s 5 HP wet dust collector, purpose-built for shops handling reactive or fine-particle metals where dry filtration falls short.
Its water-based separation captures sub-5-micron dust and polishing fumes, while 3,100 CFM of airflow and 15,151 FPM of velocity provide strong extraction at a quiet 75dB from 5 feet.
A 45L/70L capacity drum with an easy-view water level window and drain valve keeps maintenance straightforward. Built to support NFPA 660 combustible dust compliance, the MWDC-550H draws just 4.5A at 460V (10A breaker) and includes a 1-year parts warranty plus Baileigh Lifetime Technical Support.
Fabrication Shops.
Typical work: Multi-material finishing where wet collection is required by the material — aluminum, titanium, stainless.
What they need: Needs a wet system matched to reactive or fire-sensitive materials.
Industries: Construction, Agriculture, Appliance Mfg, HVAC.
Precision Machining.
Typical work: Grinding and polishing dust extraction on reactive alloys in 460V facilities.
What they need: Needs multi-material-ready collection with 3,100+ CFM and fine-particle capture.
Industries: Aerospace, Medical Devices, Automotive, Electronics, Defense.
Specialty MRO.
Typical work: Multi-station dust collection on mixed and reactive materials.
What they need: Needs a system that reduces fire risk while keeping the shop clean.
Industries: Marine, Oil & Gas, Power Generation, Rail.
Common Applications.
Combustible / reactive metal dust collection: titanium, aluminum, copper, brass, and stainless — filters the smallest particles and reduces reactivity potential.
Sticky dust & fine sub-micron dust collection: supports NFPA 660 compliance and handles materials that would otherwise clog a dry filter.
460V facilities: the lower amp draw (4.5A vs. 9A at 230V) simplifies electrical planning in higher-voltage shops.
Works with: Titanium, Aluminum, Copper, Brass, Stainless Steel.
Warranty & Support: 1-year parts warranty plus Baileigh Lifetime Technical Support.
| Manufacturer | Baileigh Industrial |
|---|---|
| Condition | New |
| UPC | 019907009894 |
| Features |
|
| Warranty | 1 Year |
| Type | Wet Dust Collector |
|---|---|
| Amp Draw (amps) | 6.5 |
| Assembled Dimensions | 57.3" x 32.5" x 36.8" |
| Filter Type | 5 Micron Filter paper, Anti-Spark/Fireproof |
| Horse Power | 5 HP |
| Input Power | 460V |
| Maximum CFM | 3,103 |
| Model Number | MWDC-550H |
| Motor Phase | Three |
| Motor Voltage | 460 V |
| Number Ports | 1 |
| Port Size | 5" |
| Prop 65 | Cancer and Reproductive Harm |
| Weight | 494 lbs |
