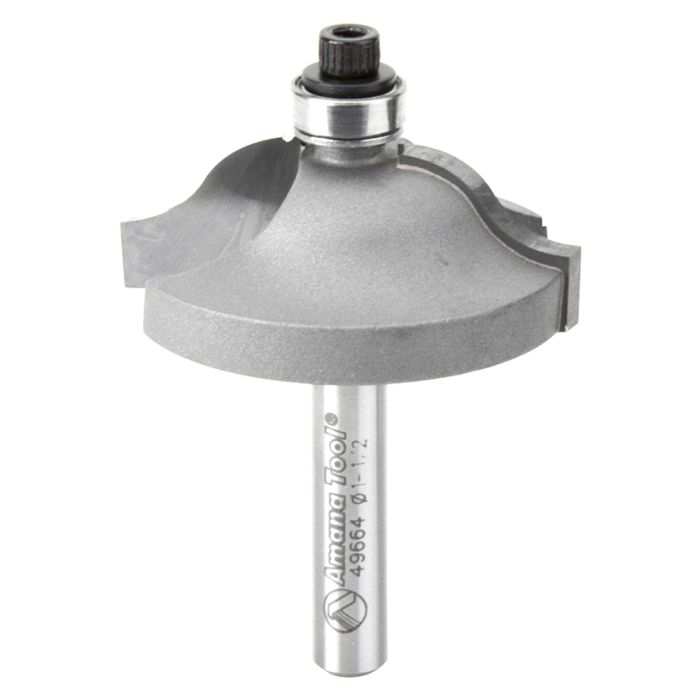

Amana Tool 49664 1-1/2" Carbide Tipped Ogee Stile Router Bit
SKU
49664
$59.17
Ships direct from manufacturer?
Profile Cutters are a unique and versatile series that can be used for general profile routing, glass doors and windows, as well as stile and rail work. (The panel groove and stub tenon must be cut separately.) The inverted hand cutters will produce copes that nest perfectly into the profiles cut by the matching "regular" bits. In addition, the inverted head allows you to profile edges that are out of the reach of regular profile bits. These 1/4 inch shank bits will fit any router. All are equipped with ball bearing guides, either on the tip or on the shank.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868549664 |
| Features |
|
| Replacement Bearing | 47702 |
| Type | Router Bit |
| Ball Bearing | Lower |
| Cutter Height(B) | 9/16" |
| Cutter Height(B1) | 1/4" |
| Cutting Diameter(D) | 1 1/2" |
| Diameter(D) | 1 1/2" |
| Flutes | 2 |
| Length(L) | 2" |
| Material | Carbide Tip |
| Overall Length(L) | 2" |
| Radius | 11/32" |
| Radius(R) | 11/32" |
| Shank | 1/4" |
| Shank(d) | 1/4" |
| Tool No. | 49664 |
| Diameter(D) | 1-1/2" |
|---|---|
| Cutter Height(B) | 9/16" |
| Shank(d) | 1/4" |
| Overall Length(L) | 2" |
| Flutes | 2 |
| Radius(R) | 11/32" |
| Cutter Height(B1) | 1/4" |
| Replacement Bearing | 47702 |
| Style | Ogee Stile |
