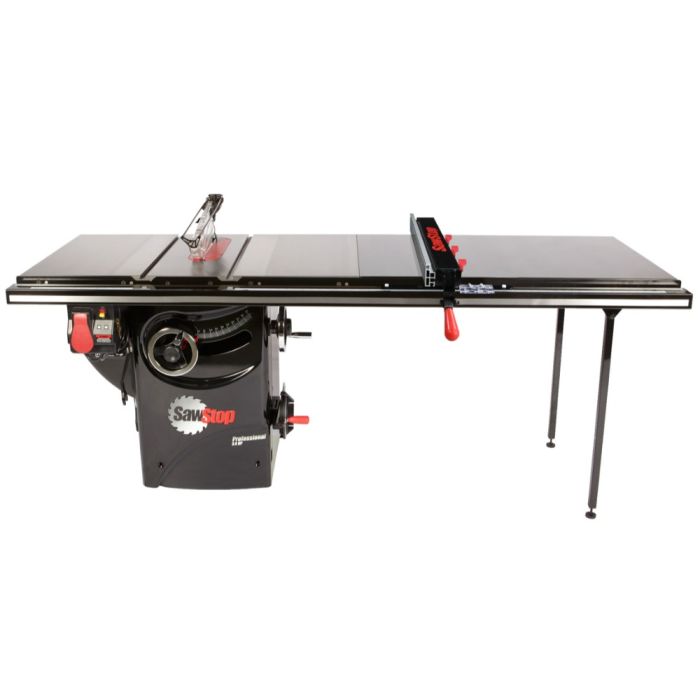

SawStop PCS31230-ATGP52, 3HP 52" TGAdvance Professional Cabinet Saw
The Professional Cabinet Saw is SawStop’s top selling cabinet saw, offering unmatched fit and finish and best-in-class cutting performance.
52-INCH T-GLIDE ADVANCE FENCE ASSEMBLY: The 52-inch T-Glide Advance Fence & Rail are made of heavy-gauge steel for sure lockdown and reliably square cutting for years without deflection. The multi-function aluminum fence face provides the ability to use in three positions, with a dovetailed groove for attaching accessories and jigs.
UNMATCHED QUALITY: The trunnion and arbor are built for precision, strength and stability. The gas piston elevation delivers smooth and easy adjustability. Table flatness is measured diagonally at 0. 010” maximum gap.
DUST COLLECTION: 99% dust collection is delivered above the table with the included dust collection blade guard, and below the table with advanced shrouding around the blade. Available Overarm Dust Collection (Model # TSA-ODC, sold separately) routes dust away from the blade and into the 4” port.
SAWSTOP PATENTED SAFETY SYSTEM: Stops a spinning blade on contact with skin. The blade stops in less than 5 milliseconds, and drops below the table, minimizing a potentially life-altering injury to a mere scratch.
RELIABILITY: The Control Box houses the on-off switch, power paddle, and on-board computer, and constantly checks that all systems are working to reliably keep you safe.
3HP MOTOR: The 3HP motor gives you the extra power you need to quickly rip most materials you come across
| Manufacturer | SawStop |
|---|---|
| Condition | New |
| Features |
|
| Includes |
|
| Video |
| Type | Cabinet Saw |
|---|---|
| 52" Rip Capacity | PCS31230-ATGP52: 52" T-Glide Advance Fence Assembly |
| Overall Saw Dimensions 52 in | 85 1/4" W X 33" D X 34" H |
| Motor Option(S) (60hz Tefc) | 1.75 or 3 HP Available |
| Motor Configuration 2 | PCS31230: 3 HP, 1 Phase, 230V, 13 A, Plug: NEMA 6-15P w/9’ cord |
| Saw Body Footprint | 19-3/8" W X 19 3/8" D (Cabinet) |
| Extension Wings | 12" W X 27" D Each |
| Extension Table 52 in | 40 1/8" W X 27" D |
| Cast Iron Table | 20" W X 27" D |
| Cast Iron Table (W/ Extension Wings) | 44" W X 27" D |
| Weights - Table Saw Only | 335 Lbs |
| Blade | 40-tooth, Prof. Grade, 5/8" Arbor |
| Blade Tilt | Left |
| Blade Plate Thickness | 0.078" (2mm) |
| Max. Depth of Cut, Blade at 45 Deg | 2-1/4" |
| Max. Rip, Left of Blade | 12" |
| Dado Max. Width | 29/32” |
| Blade Diameter | 10" |
| Blade Kerf | 0.118" (3mm) |
| Max. Depth of Cut, Blade at 0 Deg | 3-1/8" |
| Max. Rip, Right of Blade - 52 in | 52" |
| Dado Diameter | 8" (Requires Dado Brake Cartridge & Insert) |
| Arbor Diameter at Blade | 5/8" |
| Second Bearing Size | 52mm OD X 25mm ID |
| Table Behind Blade (Max. Elevation) | 7-1/2" |
| Table Flatness Measured Diagonally | 0.010" Maximum Gap |
| Deviation of Miter Gauge Indexing Stops From Actual | ±0.25deg |
| Main Bearing Size | 62mm OD X 30mm ID |
| Table in Front of Blade (Max. Elevation) | 10-1/4" |
| Arbor Runout | 0.001" Maximum Allowable Runout |
| Blade Alignment With Miter Slot | 0.010" Maximum Displacement |
| Alignment Between Splitter and Blade | 0.010" Maximum Difference |
| Miter Slots T-shaped | 3/4" at Top, 1" at Bottom, 3/8" Deep |
| Miter Slots Info | 5-1/2" (Arbor Flange to Center of Right Slot) |
| Miter Slots Center | 11-1/8" Center-to-Center |
| Dust Collection Port Diameter | 4" |
| Dust Collection Blade Guard (Standard on 3 Hp Saws) | Polycarbonate, Extends 1-3/16" Right of Blade |
| Insert | Zero Clearance, Phenolic Core, Melamine Surfaces |
| Belts | 2 V-ribbed Belts - Arbor B. Static Dissipative |
| Riving Knife / Splitter Thickness | 0.090" (2.3 Mm) |
| Blade Guard | (Dust Collection) Port Diameter 1-1/2" Outside, 1-1/4" Inside |
| Hand Wheels | 7" Diameter, Cast Iron W/ Chrome Handle |
