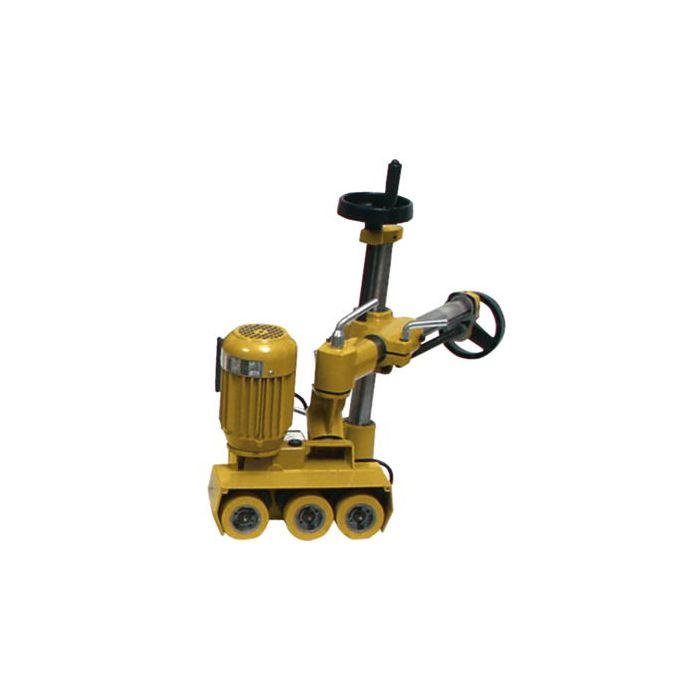

Powermatic 1790818 PF3-JR 115V 3-Wheel Stock Feeder, 1/4HP/1Ph

SKU
PM9-1790818
$1,209.00
Ships direct from manufacturer?
This rugged, heavy-duty stock feeder features a continuous-duty motor that transfers power from the gear box to the feed roller through the roller chain and sprockets, providing superior positive feeding for all types of materials. The fully adjustable support column features moveable universal joints and heavy locking mechanisms that lock the feeder in horizontal, vertical, or angle feed positions. Solid cast iron construction of body, base and universal joints provides stability with vibration-free feeding. The roller system provides money-saving wheel changes by allowing the replacement of a single roller, instead of a complete set.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerPowermatic
ConditionNew
UPC66275550508
Features
  • Continuous duty motors transfer power from the gear box to the feed roller
  • Solid cast iron construction of body pieces and base
  • Moveable universal joints and locking mechanisms lock the feeder in horizontal, vertical, or angle feed positions
  • Universal joints provide stability for vibration free feeding
  • Roller chain and sproket design provide positive feeding for all types of materials
  • Smart roller system allows for tire to be replaces with out replacing the assembly
  • Support column is fully adjustable for horizontal, vertical or angled feeder position
  • Rollers can be changed out easily and quickly
PDFs
Horsepower0.25 HP
Motor Phase1 Ph
Column Diameter1.6"
Motor Voltage115 V
Movement - Vertical6.52"
Movement - Horizontal9.8"
Swing360 Deg
RotationForward/Reverse
Maximum Height of Rollers Parallel to Tabletop6"
Range of Speeds13, 26, 33, 62
Number of Speeds4 Speeds
Distance Between Rollers - Center to Center4.32" - 3.34"
Number of Rollers3
