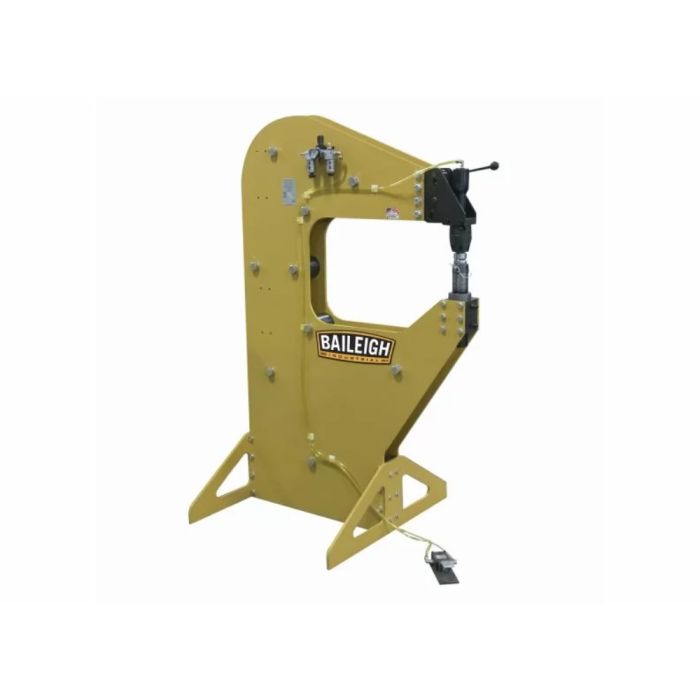

Baileigh Industrial BA9-PH28A PH-28A, Pneumatic Power Hammer, w/ 2.0sh

SKU
BA9-PH28A
$9,499.00
Ships direct from manufacturer ?

Shrink and stretch with air The compact, USA-made PH-28A hits much harder than traditional pneumatic power hammers. You can even use a thumbnail shrinker die (included). This air power hammer is recommended for startup automotive shops, metal shapers working on airplane parts, and metal artists. Special Notes: Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details. For best results, it is recommended to have a constant air supply of 120 psi

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerBaileigh Industrial
ConditionNew
UPC19907625926
Features
  • 16 Ga mild steel capacity
  • 28" throat depth
  • Variable speed: 0 to 1000 bpm
  • Includes starter tooling set
  • 28” throat can handle larger panels than the MH-19 can.
  • Stretches, shrinks, and planishes up to 16 Ga mild steel.
  • Variable speed from 0 to 1,000 beats per minute
  • Runs on 120 psi compressed air.
  • Regulator on the side lets you control the airflow.
  • Air-powered system is much quieter than a mechanical machine.
  • Foot pedal operation keeps your hands free to move the material.
  • Quick-release handle on the front allows you to lift the tool up and take the material out.
  • Comes with 5 tooling sets: 2.5” thumbnail shrinking dies, 2.5” master flat top die.1” linear stretch die,12”, 24”, and 36” radius dies
  • Oiler system on the side can deliver oil directly to the tool for convenient maintenance.
Warranty1 Year
TypePower Hammer
Aluminum Capacity (Ga)14 ga
Included Tooling2" Thumbnail Shrinking Dies, 2.5" Master Flat Top Die, 1" Linear Stretch Die, 3" x 36" Radius Die, 3" x 24" Radius Die, 3" x 12" Radius Die
Maximum CFM15 CFM
Mild Steel Capacity (Ga)16 ga
Model NumberPH-28A
Range of Speeds0 - 1000 Beats / Minute (Variable)
Throat Depth28"
Tooling Height Adjustment1.5"
Weight1000 lbs
