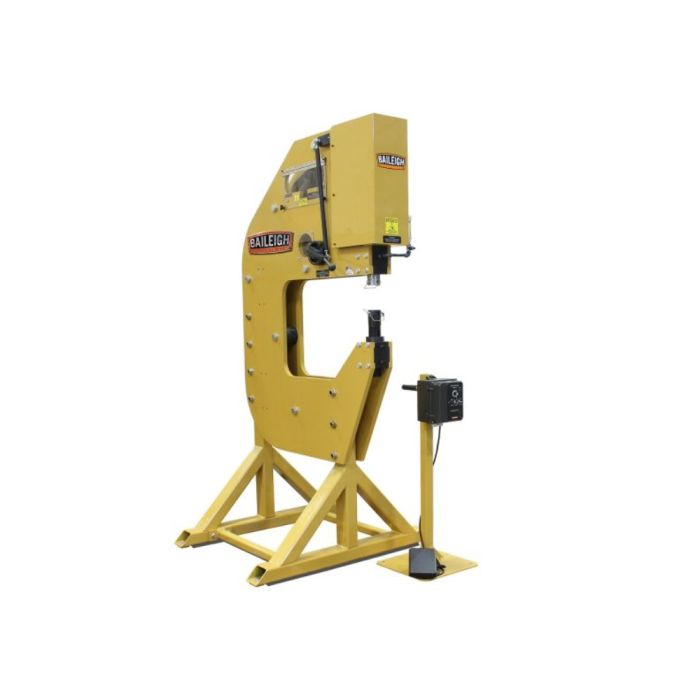

Baileigh Industrial BA9-PH28HD PH-28HD-VS, 220V 1Ph 14 Gauge Power Hammer

SKU

BA9-PH28HD

$21,999.00

Ships direct from manufacturer

Notify me when the price drops

Product Description
Features/Specifications
Reviews

Product Description

The PH-28HD-VS power hammer can hit harder and move metal faster than most hammers its size. This USA-made machine lets you shape multiple sheets at once, then planish them out.

Special Notes

Does Not Include Tooling, Uses Same Tooling as MH-19. Please consult a Baileigh Rep. for proper tooling.

Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.

WARNING: Proposition 65 Warning for California Residents View Details

Features/Specifications

More Information
Manufacturer	Baileigh Industrial
Condition	New
UPC	19907625940
Features	28 " throat depth 14 Ga mild steel capacity Variable speed: 0 to 1000 bpm Hits up to 75% harder than the MH-19 28” throat with deep cutout designed for fenders. Large 14 Ga mild steel capacity. Variable speed from 0 to 1,000 beats per minute. 3 hp motor runs on 220-volt single-phase power Developed over 20 years of research to find what’s most important to metal shapers. Hits up to 75% harder than its predecessor, the MH-19. Incorporates Dupont linkage (also used on our massive MH-37HD) to shape heavier Gas of steel. Quick-release design lets you get the tooling out of the way to add or remove your panel. Switch between 3 fixed stroke settings on the fly: 1/4", ½”, ¾”. Adjust the lower ram up or down via a large acme thread, so you won’t need to shim if different tool thicknesses are required.
Horsepower	3 HP
Warranty	1 Year

Type	Power Hammer
Aluminum Capacity (Ga)	10 ga
Input Power	220 V / 1-Ph
Mild Steel Capacity (Ga)	14 ga
Model Number	PH-28HD-VS
Range of Speeds	0 - 1000 Beats / Minute (Variable)
Throat Depth	28"
Tooling Height Adjustment	2"
Weight	2000 lbs
Work Height	62.5"
