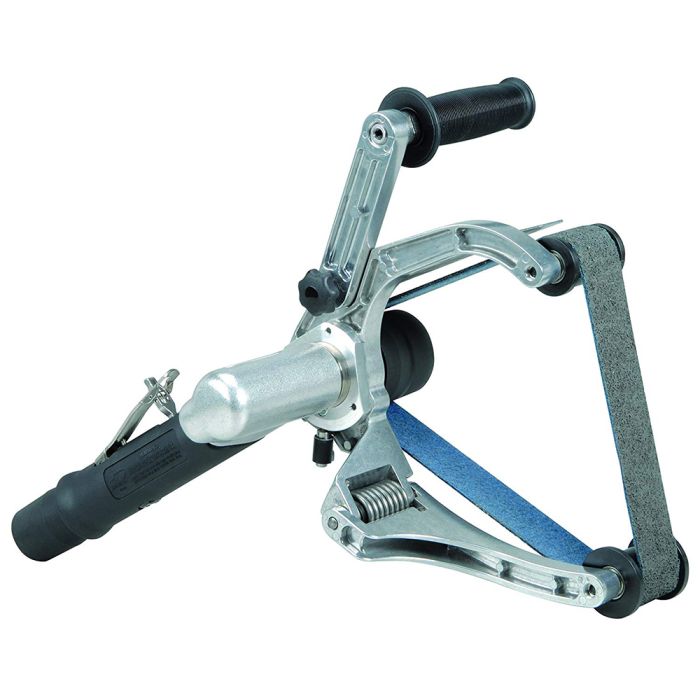

Dynabrade 14360 1-1/2" x 30" Rear Exhaust Pneumatic Pipe Belt Finisher
Ships direct from manufacturer
The pipe belt finisher is ideal for finishing applications on cylinders or workpieces with a radius. Operators use the slack of the belt to conform to the curvature of a workpiece and prevent gouging. Designed for use with either coated or Non-woven abrasives the pipe belt finisher can set and finish a grain pattern.
WARNING: Proposition 65 Warning for California Residents
View Details
More Information
Manufacturer
Dynabrade
Condition
New
UPC
00616026143609
Features
Air-powered pipe belt finisher achieves top-quality finishes on rounded surfaces in record time
An essential tool for metal and railing fabrication, plus pharmaceutical equipment, food industries and more
For use on rounded surfaces from 3/8" to 6" in diameter
Safety-lock throttle lever prevents accidental start-up of tool
Side-handle adjusts for optimum comfort and control
Comfortable grip may be moved for left or right hand use
Extended rear exhaust muffler ensures the lowest sound levels
Ergonomic tool grip is insulated for extended use
Adjustable head-assembly is easily rotated to suit each application
Tension-arm allows quick and easy changing of abrasive belts
Abrasive belt contacts 180 degrees of workpiece circumference, for diameters from 3/8" to 2-3/8"
Sound level is the pressure measurement according to the method outlined in ISO regulation ISO-15744
AirTool Type
Pneumatic
Horsepower
0.7 HP
Pressure Rating (PSI)
90 PSI
Speed (RPM)
3,400 RPM
Type
Pipe Belt Finisher
Maximum Air Flow Rate (SCFM)
40 SCFM
Maximum SFPM
2,100 SFPM
Sound Level
82 dB(A)
Air Inlet Thread Size
1/4"
Air Inlet Thread Type
NPT
Exhaust Type
Rear
Hose Inner Diameter
3/8"
Vacuum Type
Non-Vacuum
Motor Type
Rotary Vane
Tool Style
7 Degree Offset
Belt Width
0.5" to 1.5"
Belt Length
30"
Width
10"
Length
18"
Height
10"
CE Certified
Yes
EAC Certified
Yes
Weight
6.5 lbs
