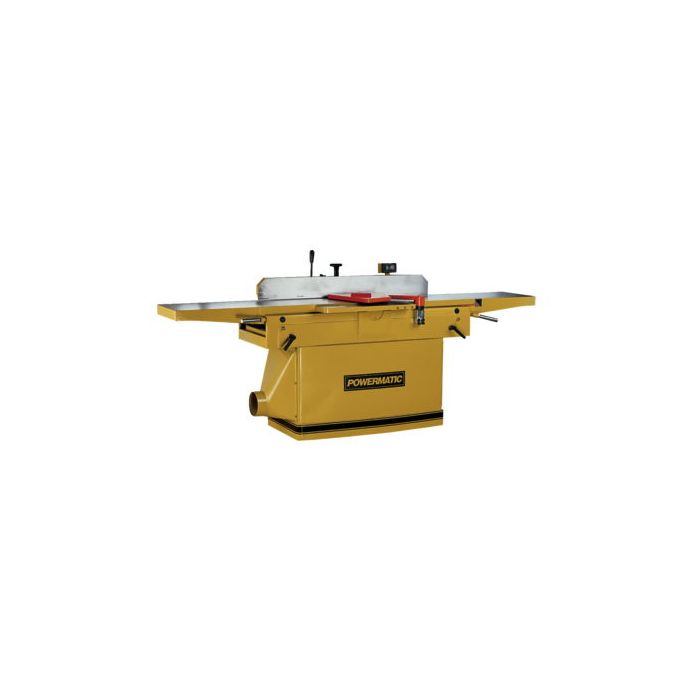

Powermatic 1791283 PJ1696 230V/460V 16" Jointer, 7.5HP/3Ph

SKU
PM9-1791283
$13,804.00
Ships direct from manufacturer ?
This 16 inch jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily on a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45 degree in and out and a positive stop for perfect 90 degree angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. The specially designed solid steel helical cutterhead consists of six rows of precision ground staggered inserts. This system makes fast work of knife changing and never needs adjustment. The heavy-duty 7-1/2HP motor delivers all the power you need for even the biggest jobs.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerPowermatic
ConditionNew
UPC66275546422
Features
  • Large 16 inch x 96 inch precision ground cast iron table surface for maximum support and fine finish
  • Helical cutterhead with 58 two-sided knife inserts reduces noice, eliminates adjustments and speeds knife change
  • Rack and pinion adjustable cast iron fence system for smoother fence positioning and sturdy work support
  • Parallelogram construction maintains close table-to-cutterhead proximity and ensures table parallelism
  • Cast iron fence bevel controls with positive stops at 45 degrees and 90 degrees
  • Full size rabbeting table supports large workpieces for rabbets up to 3/4 inch deep
PDFs

Brochure

Horsepower7.5 HP
Motor Phase3 Ph
Recommended Circuit Size30/15 Amps
Motor Voltage230/460 V
Prewired Voltage230 V
Dust Port Outside Diameter6"
Dust Collection Minimum CFM Required (CFM)800 CFM
Fence Positive Stops45, 90, -45 Deg
Fence Tilt45 Forward, 45 Backward Deg
Fence Size Length47 1/4"
Fence Size Height5 1/4"
Rabbeting Ledge5" x 24 1/2"
Rabbeting Capacity3/4"
Outfeed Table Length47 1/4"
Infeed Table Length47 1/2"
Table Height from Floor37 1/2"
Table Size Length96"
Table Size Width16"
Cutting Capacity Width16"
Cutting Capacity Depth3/4"
Cutterhead Speed (RPM)5,200 RPM
Cutterhead Diameter4"
Cuts Per Minute20,800 CPM
Number of Knives56 Two Sided Inserts, 2 Rabbet
Type of CutterheadHelical
