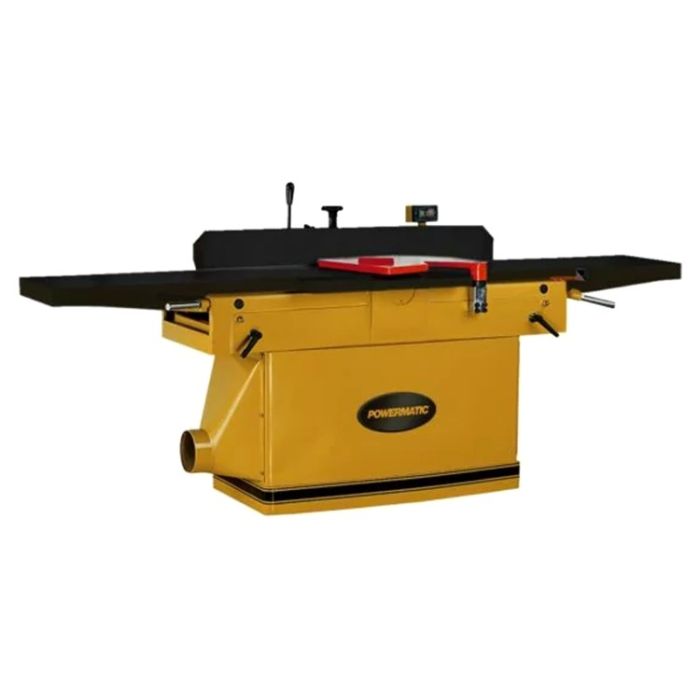

Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the Powermatic PJ1696T, 16" Jointer offers big capacity and performance in a machine that is loaded with features. A large, center-mounted fence assembly adjusts easily on a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set up at 45 degrees in and out, and a positive stop for perfect 90-degree angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish, and allows for a fast depth of cut adjustment.
This design also ensures the tables remain perfectly parallel even after years of tough duty. The specially-designed solid steel helical cutterhead consists of six rows of precision-ground staggered inserts. This system makes fast work of knife changing and never needs adjustment. The heavy-duty 7-1/2-HP motor delivers all the power need for even the biggest jobs.
WARNING: Proposition 65 Warning for California Residents View Details
ArmorGlide Technology gives a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives more control
Cast iron fence bevel controls with positive stops at 45 degrees and 90 degrees
Full size rabbeting table supports large workpieces for rabbets up to 3/4" deep
Helical cutterhead with 58 two-sided knife inserts reduces noise, eliminates adjustments, and speeds knife change
Large 16" x 96" precision ground cast iron table surface for maximum support and fine finish
Parallelogram construction maintains close table-to-cutterhead proximity and ensures table parallelism
Rack and pinion adjustable cast iron fence system for smoother fence positioning and sturdy work support
Note: The recommended max cutting depth for non-rabbeting cuts is 1/8”. The max cutting depth for rabbeting cuts is 1/2" as the manual has always stated
