Powermatic 1610079 PJ882 230V 8" Parallelogram Jointer, 2HP/1Ph

SKU
1610079
$3,899.99
Ships direct from manufacturer?

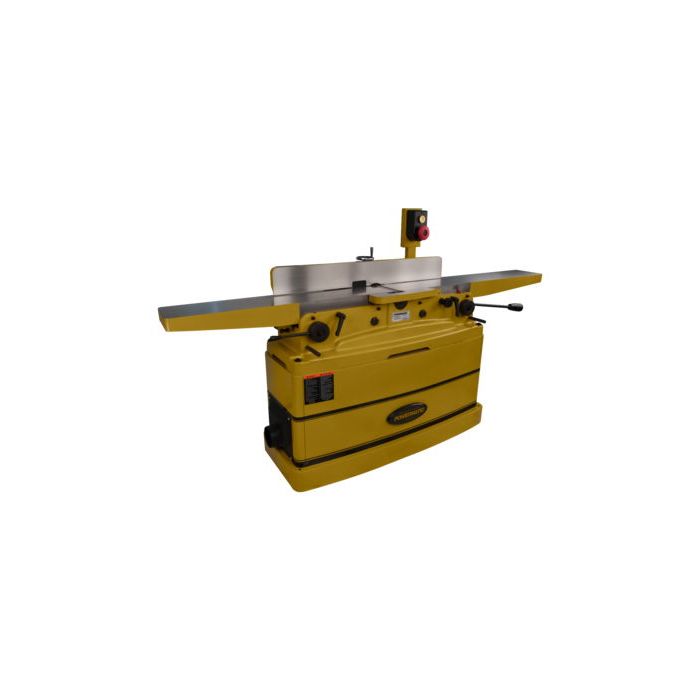

The 8 inch Parallelogram Jointer offers performance and value in a machine loaded with features. Each machine has an extra long 82 inch bed length for better work support and is equipped with an innovative single handwheel design that tilts the fence in and out with positive stops at +/-45 and 90 degrees. A non-mar insert in the fence contacts the table to avoid scratching the surface during adjustments. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also insures the table remains perfectly parallel, even after years of tough duty. The 1/8" depth limiter control knob gives you quick adjustment ability and safety. A quick twist of the knob will disable this feature. This jointer features a Powermatic controlled chip 3-knife cutterhead for a safe, smooth cut every time. Powerful 2HP motor is totally enclosed in a heavily constructed steel stand providing plenty of power for the most demanding jobs.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
Manufacturer Powermatic
Condition New
UPC 66275551474
Features
  • Straight knife cutterhead with 3 high speed steel knives create a clean cut
  • Large 8 inch x 82 inch precision ground cast iron table surface for heavy-duty work
  • Patented handwheel with worm gear system for precise fence tilting
  • Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
  • High-mount switch for operator convenience
  • Parallelogram design allows for easy and accurate adjustment of tables
PDFs
Horsepower 2 HP
Motor Phase 1 Ph
Warranty

5 Year

Recommended Circuit Size20 Amps
Motor Voltage230 V
Prewired Voltage230 V
Motor Current9 Amps
Dust Port Outside Diameter4"
Dust Collection Minimum CFM Required (CFM)600 CFM
Fence Positive Stops45, 90, -45 Deg
Fence Tilt45 Forward, 45 Backward Deg
Fence Size Length38 3/16"
Fence Size Height4 3/4"
Rabbeting Capacity1/2"
Outfeed Table Length38"
Infeed Table Length44"
Table Height from Floor31 5/16"
Table Size Length82"
Table Size Width8"
Cutting Capacity Width8"
Cutting Capacity Depth12"
Cutterhead Speed (RPM)7,000 RPM
Cutterhead Diameter3 1/16"
Cuts Per Minute21,000 CPM
Number of Knives3 Straight High Speed Steel Knives
Type of CutterheadStraight
