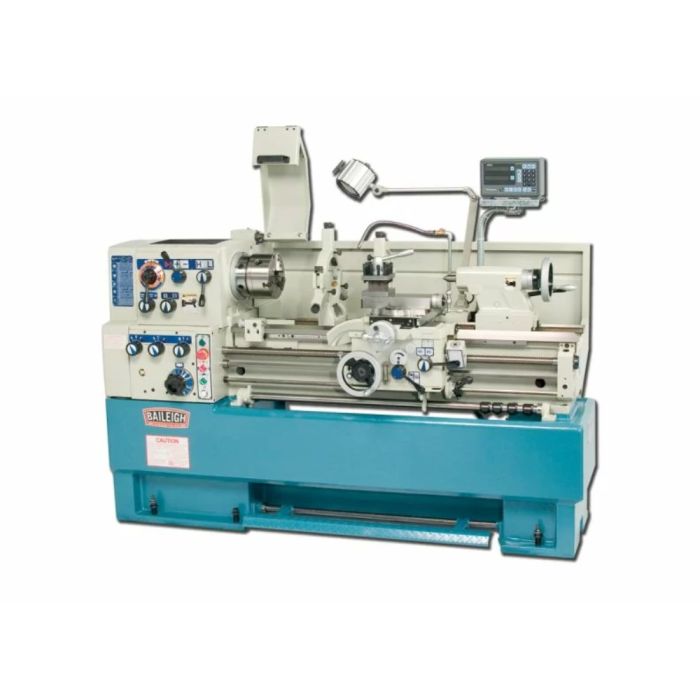

Baileigh Industrial BA9-1006140 PL-1640, 16" x 40" Precision Geared Head Baileigh Precision Lathe Ships direct from manufacturer
The perfect combination of size and power, this precision lathe includes a Mitutoyo DRO, a collar stop system, and a heavy cast iron base to ensure accuracy.
Questions? Not sure what’s the best metal lathe for you? Call us at 1-920-654-5815 and talk to a friendly Baileigh expert.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Baileigh Industrial Condition New UPC 00731325410495 Features
Mitutoyo DRO
Heavy cast iron base
40" between centers
30 to 2000 rpm
12 speeds from 30 to 2,000 rpm with a 7.5 hp motor which runs on 220-volt 3-phase power Factory-installed Mitutoyo DRO (digital readout) helps you make precise cuts with no assembly required Precision ground and hardened ways will withstand years of use in any metalworking shop ⅝" square indexing tool post with a steady rest and follow rest Collar system lets you set stops for repeat parts This is a gap lathe, so you can remove a section of the slide to fit a slightly larger diameter Full cast iron base, integrated into the mainframe, makes this one of the most rigid lathes on the market Comes standard with 3-jaw chuck, emergency foot brake, and Halogen work light Headstock chuck guard with automatic safety switch and flood coolant system (with backsplash guard) to prolong machine life Speed (RPM) 30 - 2,000 RPM Warranty 1 Year
Type Lathe Bed Height 12.20" Center Height 7.086 Compound Rest Width 4.33" Compound Slide Travel 4.75" Cross Slide Travel 9" Cutting Tool Max Section .625" x .625" Distance Between Centers 40" Input Power 220V / 3-phase Lead Screw Diameter 1.25" Leadscrew Thread Pitch 4 TPI Longitudinal Feeds Imperial Qty Speed 40 / .0012" - .0252" / rev. Longitudinal Feeds Metric Qty Speed 40 / .032 - .640 mm / rev. Model Number PL-1640 Quill Taper Morse #6 Range of Cross Feeds (MMPR) 40 / .015 - .320 mm / rev. Shipping Dimensions (L x W x H) 90" x 37" x 81" Spindle Bore 2.0625" Spindle Taper with Sleeve Morse #4 Swing Over Bed 16" Swing Over Cross Slide 9.45" Swing Through Gap 23.42" Table Length 74.75" Tailstock Spindle Travel 4.75" Taper in Tailstock Spindle 2.125" Threads Diametrical Quality Speed (D.P.) 32 / 4-32 D.P. Threads Imperial Quality Speed (TPI) 40 / 2-56 TPI Threads Metric Quality Speed (mm pitch) 53 / .4-14 mm pitch Threads Modular Quality Speed (M.P.) 44 / .4-7 M.P. Weight (Lbs.) 3940 lbs Width of Bed 11.81"
