The idea of developing a new plunge-cut saw is not new in itself. The novel aspect of this development, however, was the origination of a unique precision product from a set of especially designed machine components.

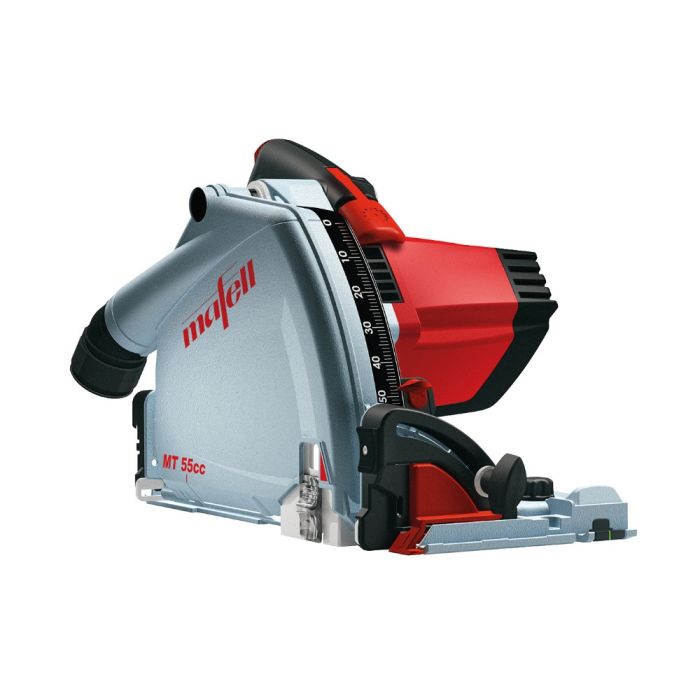

The plunge-cut saw MT 55 cc is a jack of all trades. It can execute plunge, parting, bevel and angled cuts with supreme precision and without any tearing.
The scoring function is quickly activated in a single movement. The MT 55 cc then cuts visible edges as cleanly as a stationary machine, even if the splinter guard is worn.
Continuously variable speed for a variety of materials and sawblades.
The cutting depth range has now been extended to 57 mm (2 1/4 in.). Thanks to the innovative tilting system, the options afforded for bevel cuts are practically unlimited as well.
Usage
The MT 55 cc comes into its own, for example, when executing high-precision plunge cuts in kitchen worktops.
Mafell offers the fastest blade change worldwide. Simply press release button and lift lever. Housing opens and allows you to change the blade in a matter of seconds, without any risk of damaging the teeth.
The saw is easy to use on other track systems as well.
With or without rail – simply turn the pointer to show the exact cutting depth.
| Manufacturer | Mafell Tools |
|---|---|
| Condition | New |
| UPC | 04032689187303 |
| Features |
|
| Includes |
|
| Video | |
| Application | Cross-cutting and Rip Cuts Bevel Cuts -1 to +48° Plunge Cuts Compatible Materials Include Solid Wood, Cement Fiberboard, Melamine Resin Panels (Trespa), Osb, Gypsum Fiberboard, Plastics, Façade Boards and Various Board Materials |
| Electric Brake | No |
| Variable speed | No |
| Type | Plunge-Cut Saw |
|---|---|
| Universal Motor (V) | 112V |
| Cutting Depth | 0 - 57 mm |
| Cutting Depth at 45 Deg | 0 - 40.5 mm |
| Tilt Range | -1 - +48 Deg |
| Nominal No. Of Strokes – No Load | 3600-6250 1/min |
| Nominal Power Input (W) | 1400 W |
| Nominal Power Input (HP) | 1.9 HP |
| Weight | 9.9 lbs |
