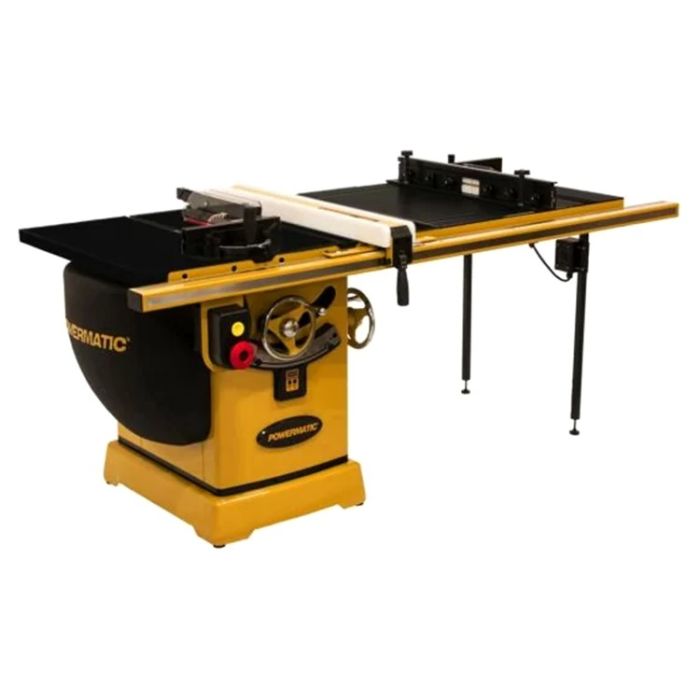

Powermatic PM1-PM25150RKT 10" 5HP ArmorGlide Router Lift Table Saw

SKU
PM1-PM25150RKT
$7,556.00
Ships direct from manufacturer?

Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the award-winning PM2000T table saw sets a new standard for innovation with an array of patented features and massive body design. The ArmorGlide coated cast iron tables are oversized, and the redesigned arbor lock lever is accessible from above the table top to eliminate the need for dual arbor wrenches. The quick-release riving knife design helps reduce the chance of kickback. The blade tilt scale features an integrated digital readout as well as adjustable angle indicators for repetitive bevel cuts.

The redesigned integrated retractable hydraulic caster system lifts our table saw much higher than the previous model to assist when moving it over thresholds. A wide stance, heavy-duty box trunnion and concave teeth on the trunnion gears promote easier raising and tilting of saw blade. The poly-V drive belt system results in quieter, more efficient power transfer from the motor to the arbor, with virtually no vibration and less heat buildup. An improved built-in dust collection port with convenient access to the inside of the saw cabinet provides simple cleanup. The saw has a proprietary safety switch with magnetic interlock, and the stop button can be knee activated.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerPowermatic
ConditionNew
Features
  • ArmorGlide Technology gives a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives more control
  • Miter guage is built with robust materials with many positive stops for the most commonly used angles
  • Adjustable angle indicators on the blade bevel scale for repeatable bevel cuts
  • Arbor lock for quick and easy blade changes
  • Integrated digital read out for precise bevel cuts
  • Integrated dust collection
  • Integrated hydraulic castor system for ease of movement around the shop
  • Matching beveled edge between table and extension wings
  • One-piece cast iron box trunnion provides the strongest stability of any Powermatic table saw
  • Precision-ground, high luster cast iron tabletops with front and rear edge bevel
TypeTable Saw
Arbor Diameter5/8"
Arbor Speed (RPM)4500 RPM
Blade Diameter10"
Dust Collection Minimum CFM Required (CFM)400 CFM
Dust Port Outside Diameter4"
Gross Weight555 lbs
Maximum Depth of Cut at 45 Degrees2 1/8"
Maximum Depth of Cut2 1/8" or 3 1/8"
Maximum Diameter of Dado8"
Maximum Rip Left of Blade13 1/2"
Maximum Rip Right of Blade50"
Maximum Width of Dado13/16"
Miter Gauge TypeT-Slot with Stops
Motor Amps4.8 A
Motor Power5 HP
Motor Voltage230 V
Net Weight405 lbs
Overall Dimensions (L x W x H)84 3/4" x 39 1/8" x 40 3/8"
Prewired Voltage230 V
Recommended Circuit Size (Amps.)30 A
StyleCabinet
Table Height from Floor35"
Table Size (L x W)30 1/2" x 22"
Table TypeCast Iron
Phase1 PH
