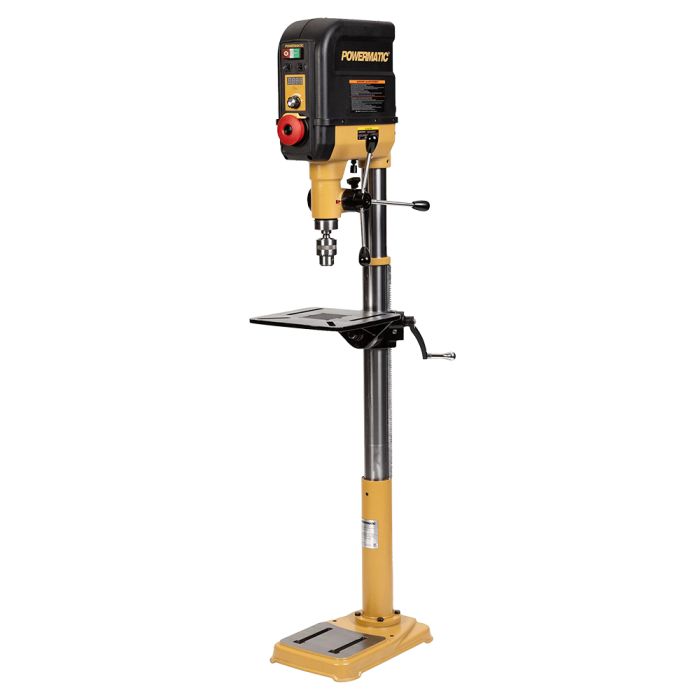

Powermatic PM1-33 PM2815FS 120V Variable Speed Floor Standing Drill Press

SKU
PM1-33
$2,012.00
Ships direct from manufacturer ?

The Powermatic 2815FS is our solution Precision redefined! The PM2815FS Drill Press features a gear-driven spindle that ensures consistent torque throughout its operational range. Even when dealing with the toughest materials, this gear drive efficiently minimizes inertia, granting this drill press world-class performance in its category Accuracy at its Peak: Control our work with precision. The large LED Digital Read Out offers real-time bit RPM feedback. But that's not all – our drill press comes equipped with laser cross-hairs, pinpointing the exact point where our bit meets our workpiece. Precision has never been easier to achieve. Quality We Can Trust: At Powermatic, quality is our legacy. Every component, from the handles to the motor, is crafted to the highest standards. The Powermatic drill press isn't just a machine; it's a promise of durability. Count on it as our reliable workshop companion for years to come.

1 subject to local/national electrical codes.
2 The specified values are emission levels and are not necessarily to be seen as safe operating levels. As workplace conditions vary, this information is intended to allow the user to make a better estimation of the hazards and risks involved only.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerPowermatic
ConditionNew
Features
  • Gear driven power transfers torque consistently and efficiently for a wide range of materials
  • Electronic variable speed from 250-3000 RPM
  • Laser cross hairs provide unbeatable accuracy and precise tool point indication
  • Large visible digital readout gives users precise speed control
  • Extended quill travel, allowing us to tackle larger projects with ease
  • Heavy-Duty construction
Type Drill Press
Model Number PM2815FS
Number of Spindle Speeds Variable
Motor Type Brushed DC
Horsepower 3/4 HP
Phase Single
Voltage 120 V
Input Power 115 V
Cycle 60 Hz
Listed FLA (Full Load Amps) 11.6 A
Main On/Off Switch Manual Push Button, with Safety Key and Power Indicator Lamp
Power Transfer Gears
Power Cord 14 AWG, 6 1/2'
Power Plug Included 15 Amp
Recommended Circuit Size¹ 20 A for 115 V
Laser Yes
Work Lamp LED
Spindle Taper MT2
Material (Column) Steel
Material (Head, Table, Base) Cast Iron
Net Weight (Approx.) 164.12 lbs
Overall Dimensions Assembled, L x W x H (Approx.) 14.17" x 23.22" x 70.07"

Head and Capacities

Swing 15"
Chuck Style Keyed / MT2-JT3
Chuck Size 5/8"
Spindle Travel 5"
Scale Display 4" (Spindle Travel Per One Revolution of Handle)
Depth Setting 3.7"
Quill Diameter 2.04"
Speed Range (RPM) 250 - 3000 RPM
Maximum Spindle to Table Distance 18.5"
Minimum Spindle to Table Distance 1.77"
Maximum Chuck to Table Distance 11.02"
Maximum Spindle to Base Distance 22.83"
Maximum Chuck to Base Distance 18.464"
Minimum Spindle to Base Distance 45.433"
Readout Digital
Speed Selection Dial

Table

Table Size, L x W 12.59" x 11.614"
Table Tilt 0 to 90 Deg L and R
Table Rotation Around Column 360 Deg
Table Insert 3.7" x 3.9"

Base and Column

Base Size, L x W x H 17.9" x 11.74" x 2.28"
Column Diameter 2.87"
