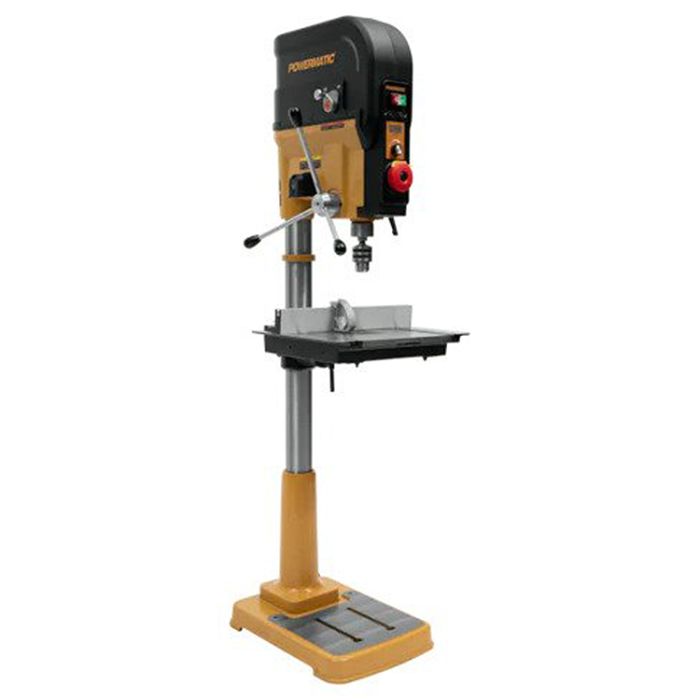

Powermatic 1792820 PM2820EVS Drill Press, 1HP/1Ph

SKU
PM9-1792820
$3,035.00
Ships direct from manufacturer?

Gear up for the Ultimate Performance with the Powermatic PM2820EVS Drill Press. Gear driven power transfers torque consistently and efficiently for any project a wide range of materials. With a removable table with 45 degree rotation it has capacity for projects large and small. A high visibility laser pinpoints the drilling location for total accuracy. Powermatic has added a patented depth stop make countersinking easy. Included fence and stop help make repeat and production drilling efficient. Handles can be moved to right or left for ease of use. Oversized cast base give this drill press stability.Integrated LED light reduces shadows for project visibility.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerPowermatic
ConditionNew
Features
  • Gear driven power transfers torque consistently and efficiently for a wide range of materials
  • The electronic variable speed means torque is not lost using either the higher or low speed settings. Low speed setting ranges 150 – 870 RPM and the high speed setting ranges 600 – 3600 RPM
  • Highly visible digital readout gives users control
  • Designed for a range of materials and applications
  • Standing on an oversized cast base for outstanding stability for the 20 inch swing
  • Handles can be reversed for left or right sided operation
  • The large cast table adjusts to a range of positions and tilts to a full ninety degree position
  • Includes the most versatile table in the drill press market. Allows insert to be removed for better access to oversized pieces
  • Includes Powermatic’s patented integrated depth stop for efficient drilling
  • For unbeatable accuracy, the laser cross hairs provide precise tool point indication
StyleFloor
Swing20"
Spindle Travel6"
Number of Spindle Speeds2 Variable
Spindle TaperMT2
Spindle Speed (RPM)150 - 3600
Spindle Distance to Table (Max.)23"
Spindle Distance to Base45
Table Size Length20-1/2"
Table Size Width15-1/2"
Table Size Fully Extended Length20-1/2"
Table Size Fully Extended Width15-1/2"
Table Tilt90 L/R
Fence Size Length19-3/4"
Fence Size Height2-5/8"
Chuck Distance to Base41-1/4"
Chuck Distance to Table19-1/4"
Chuck Size5/8"
Column Diameter3-3/8"
Base Size22-3/4" x 16-3/8" x 2-3/4"
Prewired Voltage115 V
Motor Voltage120 V
