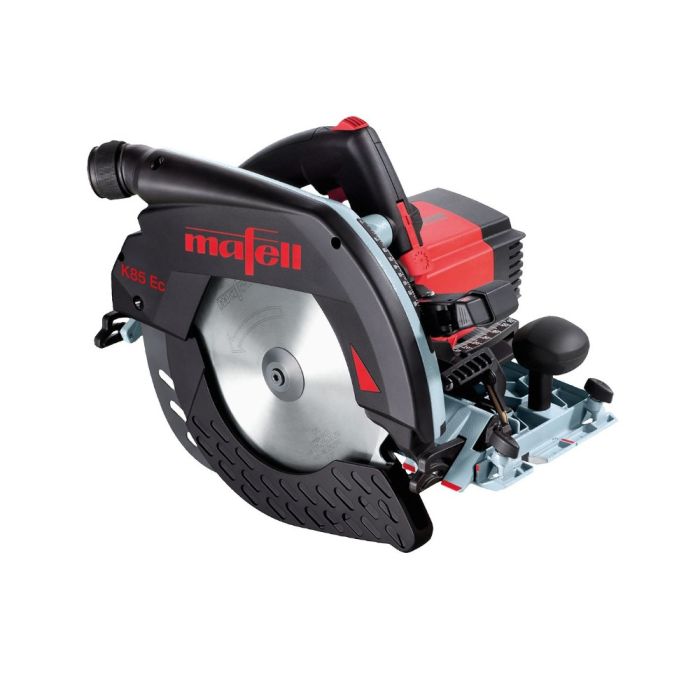

Mafell Tools 918233, K 85 Ec in L-Max 120V Portable Circular Saw

SKU
918233
$1,549.00
In Stock

The Mafell portable circular saw combines power and precision with ease of use and ergonomic design. These properties transform the machine into a unique system.

Sheer power and high torque take on a whole new meaning with the high-output CUprex motor. It offers performance-optimized digital electronics and newly developed control technology. Its speed is continuously variable according to the nature of the material and application.

It is no longer necessary to unscrew the riving knife – the Flippkeil offers you optimum user-friendliness and safety when plunge cutting.

Usage

Thanks to the unique tilting system, the sawblade always cuts directly along the rubber lip, irrespective of the angle setting.

Working close to the edge is facilitated by the K 85-UA roller edge guide. Use the scale marked on the arm to set the spacing.

By retracting blade alongside the second handle, offering up the machine is easy and safe, especially when executing bevel cuts.

The sawblade and pivoting guard can be locked with a single action. This practical solution engages the starting lockout at the same time.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerMafell Tools
ConditionNew
UPC04032689189437
Features
  • With CUprex, the high-performance motor
  • Electronic control
  • For an enhanced cutting depth of up to 88 mm (3 7/16 in.). Even when used in conjunction with the guide rail, it achieves an exceptional depth of 82 mm (3 3/16 in.)
  • Optimum chip ejection, especially when sawing insulating materials
  • Sawing to mark. The pointer adjusts automatically to the set tilt angle
  • The cutting depth is set and locked in a single, quick action
  • Thanks to the new tilting arrangement, reading the scale is easier than ever before
  • With the groove in the base plate, the guide tracks available as optional accessories can be used as a crosscutting system
Includes
  • 1 TCT Saw Blade 237 X 1.8/2.5 X 30 mm (9 5 /16 in.), AT, 12 Teeth, for Rip Cuts in Wood; Ref. No. 092590
  • 1 Parallel Guide Fence K 85-pa; Ref. 205323
  • 1 Hose Connector for Chip Extraction; Ref. No. 205290
  • 1 Allen Key 5 mm; Ref. No. 093034
  • 1 Mains Cable 4 M - Gb 110 V; Ref. No. 087803
  • L-MAX Carrying Case
Electric BrakeNo
Variable speedNo
Type Circular Saw
Universal Motor 120 V / 60 Hz
Nominal Power Input (W) 1800 W
Nominal Power Input (HP) 2.4 HP
Cutting Depth 0 - 88 mm
Cutting Depth at 45 Deg 0 - 61.5 mm
Cutting Depth at 60 Deg 2 - 44.5 mm
Tilt Range 0 - 60 Deg
Weight 14.8 lbs
Application Cross-cutting and Rip Cuts, Bevel / Compound Miter Cuts Up to 60°, Birdsmouth Cuts, Plunge Cuts, Chamfers and Grooves, Compatible Materials Include Solid Wood, Board Materials, Insulating Materials, Doors, Worktops and Internal Finishing and Renovation Materials
