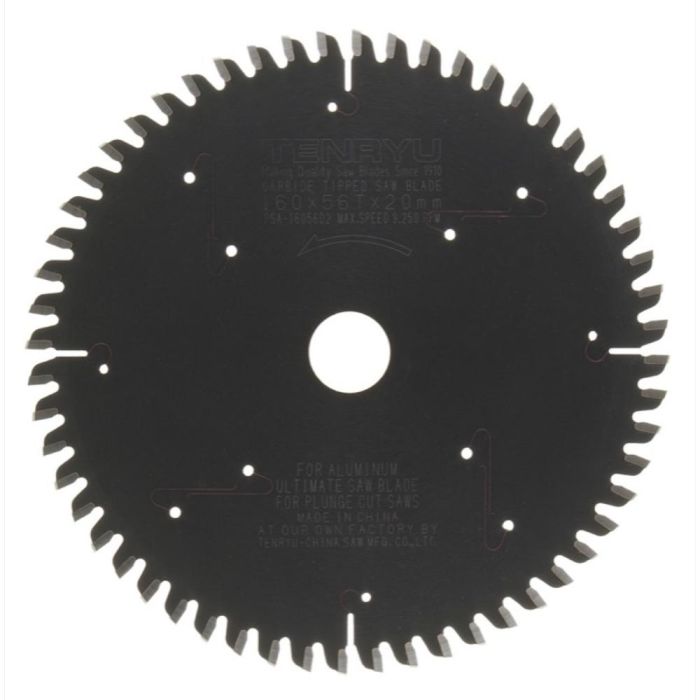

Tenryu PSA-16056D2 160mm 56T Circular Saw Blade, Non-Ferrous Cutting for TS55 and TSC55 Tracksaw

SKU
PSA-16056D2
$60.00
In Stock, Subject to manufacturer availability?

Plunge-Cut Saw Blades PSA-16056D2, 160 mm diameter, 56 teeth, 20 mm arbor, TCG grind, 0.087 inch kerf, -3 rake, 0.063 inch plate. Aluminum Tenryu plunge cutting saw blades are suitable for the Festool TS55 and TS75 machines and others. These Plunge cutting saw blades from Tenryu feature resin filled laser cut slots to reduce cutting noise and vibration, PTFE coated plate to reduce pitch build-up and to lower resistance, an industrial strength, select grade of carbide tip for smoother cuts and longer tool life. Tenryu's Plunge cutting saw blades also feature ATAF shear face grind for splinter-free cross cuts.

More Information
Manufacturer Tenryu America
Features
  • Resin filled laser cut slots to reduce cutting noise and to reduce vibration
  • PTFE coated plate to reduce pitch build-up and to lower resistance
  • Select grade of carbide tips for industrial quality jobs
  • ATAF shear face grind for splinter-free cross cuts
PDFs
Application Aluminum cutting
Arbor Size 13/16"
Blade Diameter 6 5/16"
Blade Material Non-Ferrous
Rake angle -3 Deg
Blade thickness (Kerf) 0.087"
Tooth grind Triple Chip Grind (TCG)
Number of Teeth 56
Speed (RPM) 9,250 RPM
Suitable for Use With Festool TS-55 Plunge Cut Saw
Weight 1.50 lbs
