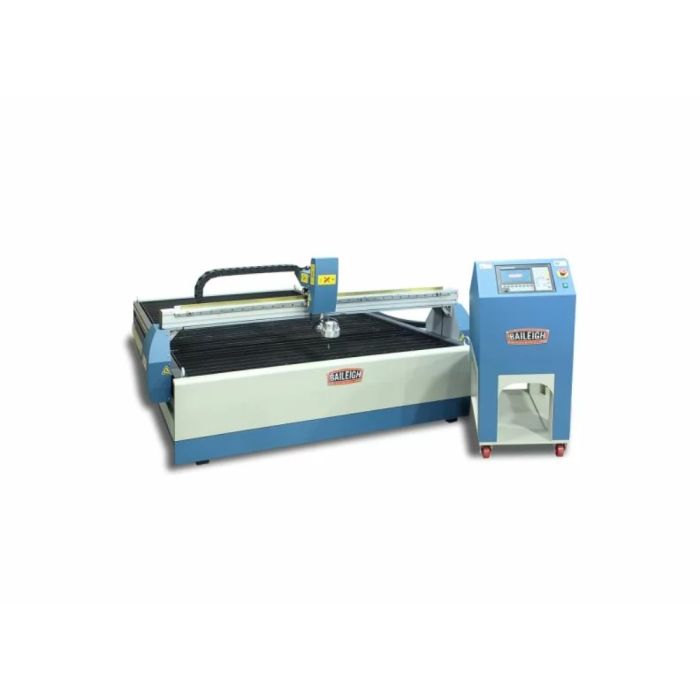

Baileigh Industrial BA9-1225308 PT-48AH-W, 220V 1Ph 4' x 8' CNC Plasma Table

SKU

BA9-1225308

$23,979.00

Ships direct from manufacturer

Notify me when the price drops

Product Description
Features/Specifications
Reviews

Product Description

With variable height control, the PT-48AH-W makes perfect cuts in uneven material. This CNC plasma table comes assembled with a heavy steel frame and includes design software.

To get started just:

Uncrate the machine.

Add a plasma system, power, and a clean, dry air supply.

Fill tank with water.

Industrial plasma cutter Covered by a 1-year parts warranty.

We keep most replacement parts in stock for quick shipping.

You can depend on lifetime technical support by phone from our team of knowledgeable reps.

Plasma torch systems sold separately. We’ll let you choose the Thermal Dynamics Cutmaster model that works best for your application. This CNC plasma cutting machine is compatible with automatic torches, but not manual ones.

BobCAD-Cam Express Design Software (Included)

The PT-48AH-W comes standard with BobCAD-Cam Express programming software. You can design or plot out your project on any computer and load the plasma table via a USB drive. To learn more or download a free trial, click the BobCAD-Cam logo above.

Questions? Call us at 1-920-654-5815 and talk to a Baileigh expert.

WARNING: Proposition 65 Warning for California Residents View Details

Features/Specifications

More Information
Manufacturer	Baileigh Industrial
Condition	New
UPC	19907226192
Features	Runs on 220-volt single-phase power with a 60" x 100" working area You can control the X, Y, and Z axes using the integrated panel on the podium Automatic height control is integrated into the operator’s panel, eliminating secondary systems found on many other tables Operator’s podium provides space for plasma power unit even while cutting If the material is uneven or puckers under the heat of the torch, the variable height control will rise or lower in real time while cutting X, Y, and Z axes are controlled by quality stepper motors, allowing for fast and fluid movement Fully enclosed wires and electronics prevent snags and tangles Made of heavy-Ga boxed steel, this CNC plasma cutting machine can easily support large, thick industrial-sized sheets of metal Ground, hardened, and polished square rails combined with linear orbital bearings add impressive strength to the machine Integrated water table helps control smoke and dust created while cutting to help keep your shop clean
Warranty	1 Year

Type	CNC Plasma Table
Approx. Pressure (Tons)	Depends on Plasma System Chosen
Drive	Stepper Motor
Input Power	220 V / 1-Ph
Machine Weight	3021 lbs
Model Number	PT-48AH-W
Software	BobCAD-Cam Express software included
Table Dimensions	67" x 120"
Table Height	19.6"
Z-Axis Travel	3.4"
