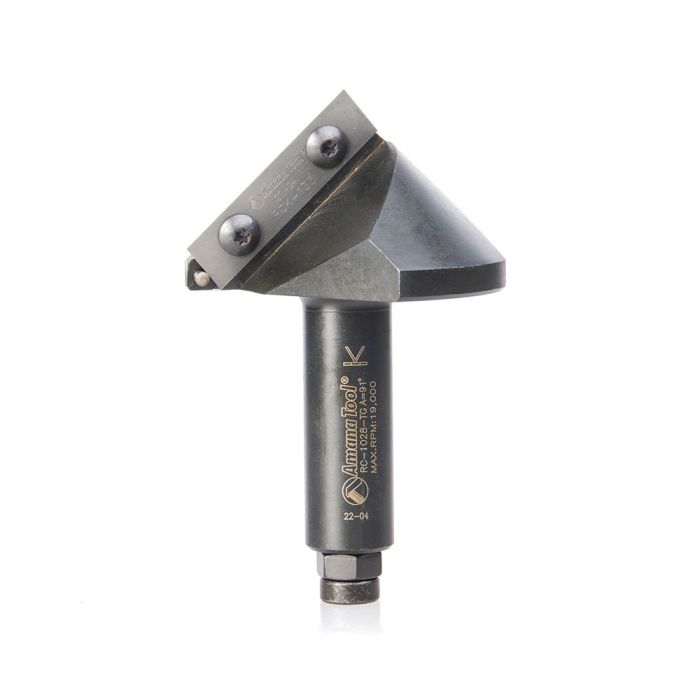

Amana Tool RC-1028-TG, Miter Folds 3/4" 91 Deg Router Bit for ThermoGrip

SKU
RC-1028-TG
$227.16
Ships direct from manufacturer ?

For ThermoGrip CNC Heat shrink tool Holders.

The innovative CNC tool design uses the highest grade carbide insert knife which allows you to get two uses out of each insert. Once the knife shows signs of wear you can rotate the insert for a brand new cutting edge. These industrial V-Groove insert router bits were especially designed for applications including: Miter folds - "create the perfect joint", Signmaking and lettering.

*When working with Xanita LightBoard panel (X-board X-board plus) we recommend using MDF knives for better results.

Secure locking screw system ensures maximum safety and maintains cutting accuracy. CNC router requires quality hold downs to ensure the least possibility of material shifting during operation.

Warning: Before using any insert tool, make sure the set screw is tightened firmly. When replacing a dull insert, first clean the tool and remove all dust prior to inserting the new knife.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC00073868510280
Features
    Advantages of Insert Tooling:
    • Long lasting insert knives provide superior smooth quality cuts every time
    • Quick and precise replacements of dull knives
    • Due to insert accuracy tool life is extended
    • Insert tooling allows for harder grades of carbide
    • Special carbide grades for special applications
    • Cost effective solution compared to replacing brazed router bits
    Angle(a°)91 Deg
    Angle(a°1)45.5 Deg
    B11 13/16"
    Diameter(D)2 5/8"
    Max. RPM18,000 RPM
    # of knives1
    Overall Length(L)3 7/8"
    Shank(d)3/4"
    Suitable for Use WithThermoGrip CNC Heat Shrink Tool Holders
    TypeRouter Bit
    Cutting Height (B)1-5/16"
    Cutting Edges2
    L12-3/8"
    StyleV-Groove
    ApplicationAluminum, Brass, Bronze, Copper, Gold, Silver & Carbon Fiber, (Engraving Only), Acrylic/Plastic, Composites, Composite Decking, Epoxy (Epoxy Resins), Foam, High Density Polyethylene (HDPE), Laminate, Melamine, MDF/HDF, PVC, Sign Board, Solid Surface, Veneered Plywood, Wood, Xanita Board*, 20lbs High Density Urethane
