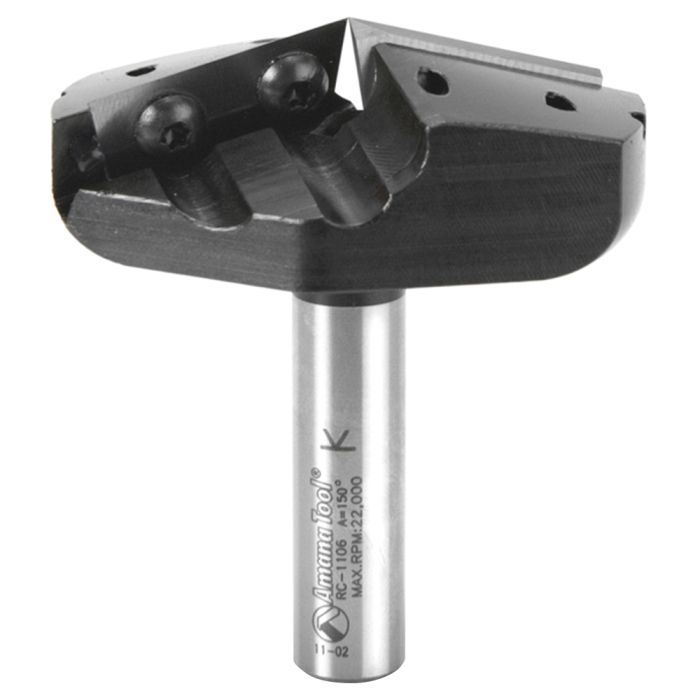

Amana Tool RC-1106 2-1/4" Carbide Insert V-Groove Router Bit
SKU
RC-1106
$238.66
Ships direct from manufacturer ?
The innovative CNC tool design uses the highest grade carbide insert knife. These industrial V-Groove insert router bits were especially designed for applications including: Miter folds - "create the perfect joint" Signmaking and lettering.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868501106 |
| Features |
|
| Application | Aluminum, Brass, Bronze, Copper, Gold, Silver & Carbon Fiber, (Engraving Only), Acrylic/Plastic, Composites, Composite Decking, Epoxy (Epoxy Resins), Foam, High Density Polyethylene (HDPE), Laminate, Melamine, MDF/HDF, PVC, Sign Board, Solid Surface, Vene |
| General Purpose Knives | RCK-137 |
| MDF Knives | RCK-354 |
| Type | Router Bit |
| Angle(a°) | 150 Deg |
| Angle(a°1) | 75 Deg |
| B1 | 1 5/32" |
| Cutter Height(B) | 19/64" |
| Cutting Depth | 1 3/16" |
| Cutting Diameter(D) | 2 1/4" |
| Diameter(D) | 2 1/4" |
| Feed Rate IPM | 280 IPM |
| Length(L) | 2 15/16" |
| Material | Carbide Tip |
| Max. RPM | 14,000 RPM |
| # of knives | 2 |
| Overall Length(L) | 2 15/16" |
| Screw # | 67115 |
| Shank | 1/2" |
| Shank(d) | 1/2" |
| Tool No. | RC-1106 |
| Diameter(D) | 2-1/4" |
|---|---|
| Cutting Height (B) | 19/64" |
| Overall Length(L) | 2-15/16" |
| Shank(d) | 1/2" |
| Angle(a°) | 150 Deg |
| Angle(a°1) | 75 Deg |
| Cutting Height (B1) | 1-3/16" |
| Cutting Edges | 1 |
| Flutes | 2 |
| # of knives | 2 |
| Length(L1) | 2" |
| Max. RPM | 22,000 RPM |
| Style | Insert V-Groove |
