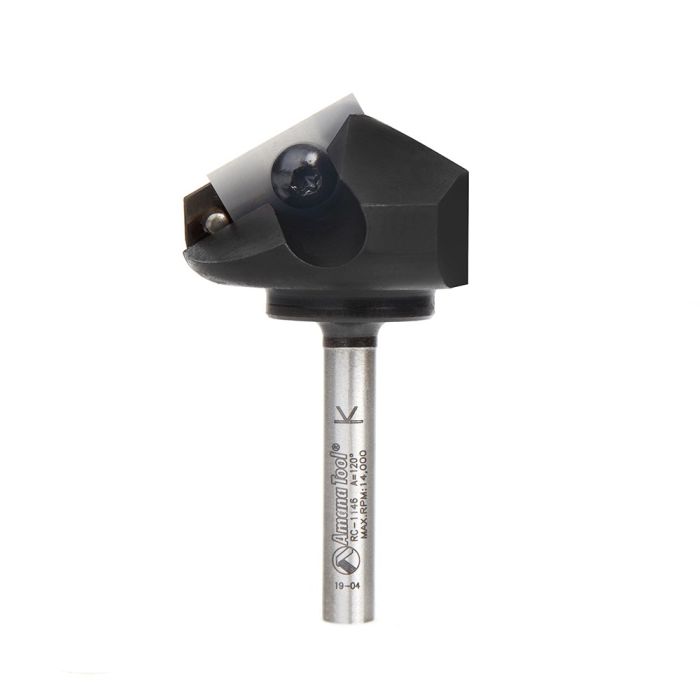

Amana Tool RC-1146, 1-23/64" x 1/4" x 2-31/64" x 120Deg 1FL Insert V-Groove Router Bit

SKU
RC-1146
$152.42
Ships direct from manufacturer ?

The innovative CNC tool design uses the highest grade carbide insert knife. These industrial V-Groove insert router bits were especially designed for applications including: Miter folds - "create the perfect joint", Signmaking and lettering.

*When working with Xanita LightBoard panel (X-board X-board plus) we recommend using MDF knives for better results.

Secure locking screw system ensures maximum safety and maintains cutting accuracy. CNC router requires quality hold downs to ensure the least possibility of material shifting during operation.

Warning: Before using any insert tool, make sure the set screw is tightened firmly. When replacing a dull insert, first clean the tool and remove all dust prior to inserting the new knife.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC00073868511466
Features
    Advantages of Insert Tooling:
    • Long lasting insert knives provide superior smooth quality cuts every time
    • Quick and precise replacements of dull knives
    • Due to insert accuracy tool life is extended
    • Insert tooling allows for harder grades of carbide
    • Special carbide grades for special applications
    • Knives can be re-sharpened multiple times without affecting the original profile
    • Cost effective solution compared to replacing brazed router bits
    Angle(a°)120 Deg
    Angle(a°1)60 Deg
    B125/32"
    Diameter(D)1 23/64"
    Flutes1
    Max. RPM14,000 RPM
    # of knives1
    Overall Length(L)2 31/64"
    Shank(d)1/4"
    TypeRouter Bit
    Cutting Height (B)25/64
    Cutting Edges2
    L11-27/64"
