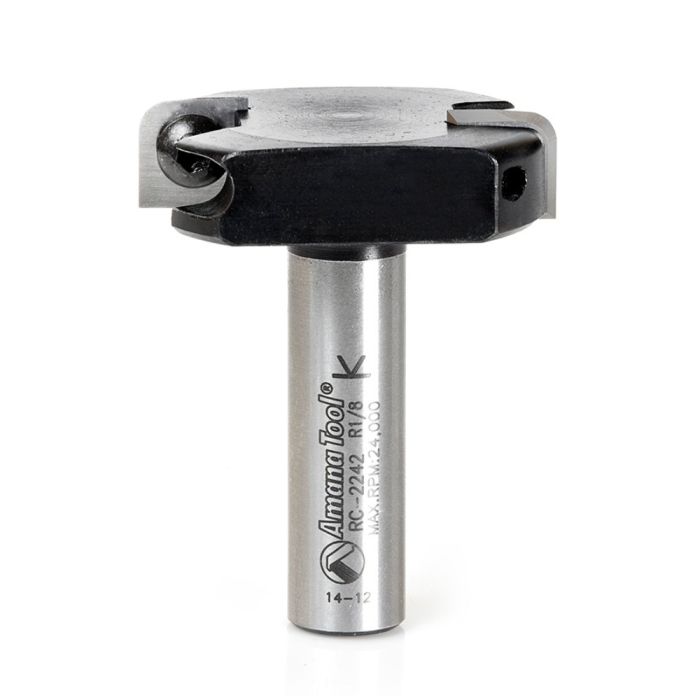

Amana Tool RC-2242, 1-3/4" x 1/2" x 2-1/4" Spoilboard Surfacing Router Bit

SKU
RC-2242
$229.56
Ships direct from manufacturer?

Amana’s new radius edge cutter RC-2242 is best recommended to be used for surface planing/flattening in surfaces of large solid wood slabs with a handheld router in router sleds.

Features a 1/8" radius bevel making this tool unique compared to other spoilboard bits. A great tool for fast removal of materials over a large surface area.

Also suitable for router sled machines, Make sure that our router sled is fully stable and squared.

These industrial router bits feature solid carbide insert knives with four cutting edges that allow users to rotate the knife when one side becomes dull providing the highest-quality finish available on woodworking tools.

Proper torques rating to tighten down screws is 2-3Nm Torques.

Note: Not to be used for slot cutting.

Insert Carbide Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler & Surface Planer 1/8 Radius x 1-3/4 Dia x 15/32 x 1/2 Inch Shank Router Bit

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC00073868522424
Features
    Perfect For:
    • Resurfacing spoilboards using CNC
    • Planing large glued up panels using CNC
    • Surfacing and finishing wood using timber slab machines
    • Rabbeting
    Featuring:
    • 4-sided solid carbide insert knives
    • Exclusive carbide grade for highest quality of cut
    • Maximum cutting efficiency
    • Faster material removal process
    ApplicationFiberboard, HDF/LDF, MDF
    Replacement KnivesRCK-344
    Angle(a°)5 Deg
    Diameter(D)1 3/4"
    MaterialCarbide
    Max. RPM28,000 RPM
    Overall Length(L)2 1/4"
    Radius(R)1/8"
    Shank(d)1/2"
    TypeRouter Bit
    Cutting Height (B)12mm (15/32")
