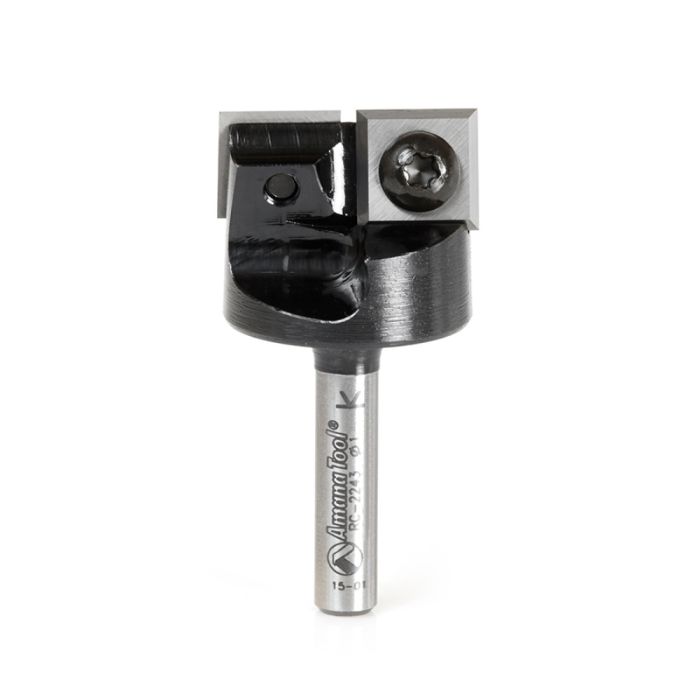

Amana Tool RC-2243, 1" x 1/4" x 2-1/64" Mini Spoilboard Surfacing Router Bit

SKU
RC-2243
$126.82
Ships direct from manufacturer?

Insert Carbide Mini Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler & Surface Planer 1 Dia x 15/32 (12mm) x 1/4 Inch Shank Router Bit.

Mini insert carbide spoilboard surfacing & rabbeting router bit great for cutting tight corners and surface planing.

Also suitable for router sled machines, Make sure that our router sled is fully stable and squared.

*For optimal results and maximum insert life, replace inserts with optional general purpose knives #AMA-12 (sold separately).

These industrial router bits feature solid carbide insert knives with four cutting edges that allow users to rotate the knife when one side becomes dull providing the highest-quality finish available on woodworking tools.

Proper torques rating to tighten down screws is 2-3Nm Torques.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC00073868522433
Features
    Perfect For:
    • Resurfacing spoilboards using CNC
    • Planing large glued up panels using CNC
    • Surfacing and finishing wood using timber slab machines
    • Rabbeting or slotting
    Featuring:
    • 4-sided solid carbide insert knives
    • Exclusive carbide grade for highest quality of cut
    • Maximum cutting efficiency
    • Faster material removal process
    ApplicationMDF, Fiberboard, HDF/LDF, Balsa Core*, Epoxy (Epoxy Resins)*, High Density Urethane (HDU Board)*, Plastic/Acrylic*, Plywood/Chipboard*, Hardwood/Softwood*, Ultra-High-Molecular-Weight Polyethylene (UHMWPE)*
    Replacement KnivesHMA-12 (2)
    Diameter(D)1"
    MaterialCarbide
    Max. RPM24,000 RPM
    Overall Length(L)2 1/64"
    Shank(d)1/4"
    TypeRouter Bit
    Cutting Height (B)12mm (15/32")
