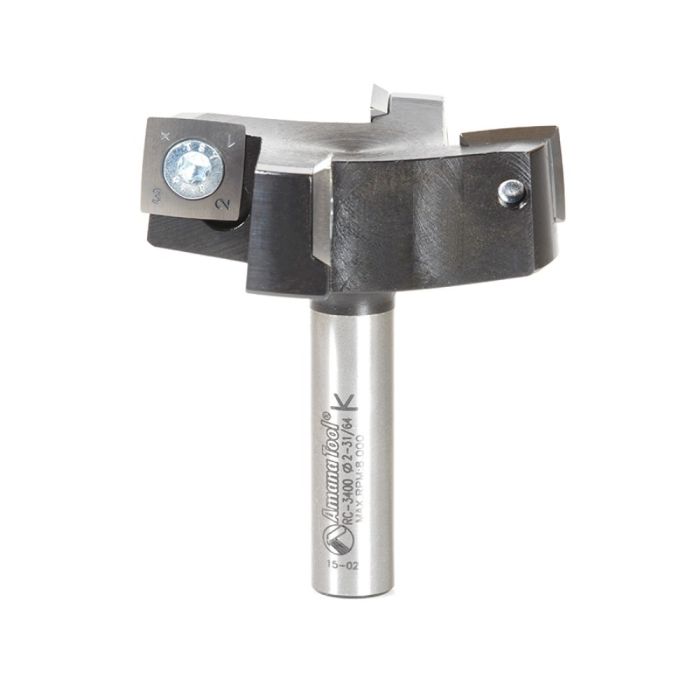

Amana Tool RC-3400, 2-31/64" x 1/2" x 2-53/64" 4FL Aluminum Face Milling

SKU
RC-3400
$311.34
Ships direct from manufacturer ?

CNC Solid Carbide 4-Flute Insert Face Milling, Flattening Aluminum, and Non-Ferrous Metals 2-31/64 Dia x 15mm x 1/2 Inch Shank End Mill / Router Bit.

The replaceable tips end mill/router bit tool body made from alloy steel with 4 solid carbide cutting inserts for maximum feed and stability specially made for CNC and milling machines.

Each tip is made from micrograin carbide for maximum tool life and has 4 cutting rounded corners that can be rotated.

Use "Ramp Down" technique. Feed Rate: 25"/min - 63"/min.

Chip load per tooth: 0.0008" - 0.002".

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC00073868534003
ApplicationAluminum, Aluminum 5052, Bronze, Copper, Fomex® with Aluminum Face, Milling / Surfacing / Facing, Flattening, Shouldering / Rabbeting, Slotting / Grooving
Diameter(D)2 31/64"
Flutes4
Max. RPM8,000 RPM
Overall Length(L)2 53/64"
Shank(d)1/2"
TypeFace Milling
Cutting Height (B)15mm
Feed Rate IPM25"/min - 63"/min
