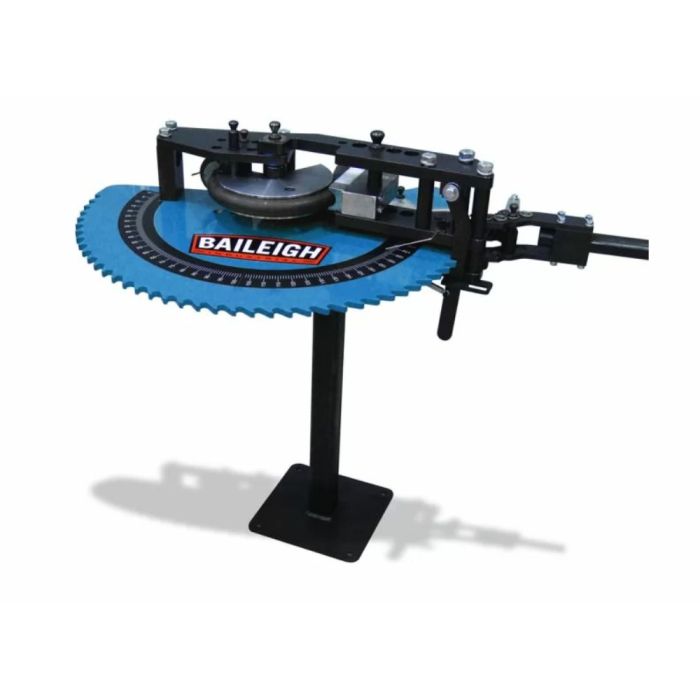

Need an affordable but powerful Bender with enough capacity for almost about any chassis fabrication shop? The Baileigh patented RDB-050 Manual Tube Bender is revolutionary in function, capacity, and efficiency.
Tackles up to 2.5" OD mild steel with a wall thickness of .120" and 2" OD Chrome Moly with a wall thickness of .120".
Choose from 3 bending speeds, depending on material type, OD, and wall thickness, to proper speed for each application.
Add this manual tubing bender to your cart today
If you like the RDB-050, you may also like the RDB-100 Manual Tubing Bender.
Please give us a call at 1-920-654-5815 to talk to a customer service representative or fill out our contact form.
U.S Patent No. #8,171,765
Sample Tooling List
WARNING: Proposition 65 Warning for California Residents View Details
2.5" mild steel tube and 2" tube Chrome Moly capacity.
Tackles up to 2.5 In. OD mild steel with a wall thickness of 0.12 In. and 2 In. OD chrome moly with a wall thickness of 0.12 In.
Just walk up to the machine, put your tubing into the hook arm insert, and begin bending, When the bend is complete, return the machine to the home position, pull your bend out-and you’re all set, tooling not included
Speed 1 produces 4 Deg per pull, This speed has the most torque, suitable for bending 2 In. OD chrome moly or 2.5 In. OD mild steel
Speed 2 produces 8 Deg per pull for intermediate materials
Speed 3 produces 12 Deg per pull for lighter gauge materials
Bends up to 200 Deg in one shot without you needing to stop and reset the machine
Anti-spring back mechanism holds each bend in place as the operator ratchets forward
No assembly or disassembly needed to produce a bend
All pivot points use aluminum bronze bushings and thrust washers for long machine life
Quick-release hook arm inserts assist when you’re changing over the machine to a different size of tubing, You can do a complete changeover in 1 minute or less
