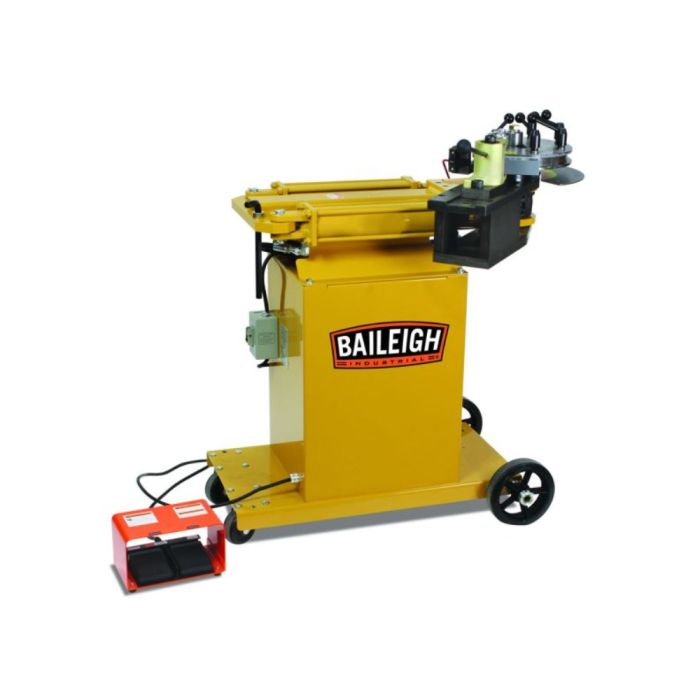

Baileigh Industrial BA9-RDB150110 RDB-150, 110V Hydraulic Rotary Draw Tube Bender Ships direct from manufacturer
This American-made machine set a new standard in 2002 as the first Hydraulic Tube Bender to bend tube and pipe 180° in one shot. Now we have thousands of RDB-150s in the field-working as well today as they did the day they were made.
Why choose the RDB-150 over similar machines?
Our original, much-imitated twin-cylinder design remains unequaled.
Small- to medium-sized fabrication shops will save time and money by investing in this hydraulic bender.
Accepts simple-to-add drop-on tooling from Baileigh-including custom sets on request-giving you thousands of possibilities.
Our limitless after-sale support means that free advice on projects and applications is always just a call away.
Please give us a call at 1-920-654-5815 to talk to a customer service representative or fill out our contact form.
Sample Tooling List
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Baileigh Industrial Condition New UPC 19907415589 Features 110V hydraulic rotary draw tube and pipe bender 2" schedule 40 pipe capacity 2.5" mild steel round tube wall capacity 10.5" CLR maximum Runs on just 110 volts of power and will work at most fabrication sites in North America Rotary draw powered by low-pressure, industrial-grade hydraulic system 8" centerline radius maximum, depending on the outside diameter of the material Bends with a capacity of 2" schedule 40 pipe and up to 2.5" tubing with a wall thickness of .120" mild steel Easy-to-read degree indicator to help you achieve correct bend degrees Quick-release counter die system for hassle-free loading and unloading Includes wheels on the base for smooth movement, helpful for storage in small shops Covered by a 1-year parts warranty and lifetime technical support Warranty 1 Year
Type Hydraulic Tube Bender Chromoly Round Tube Wall 2" Input Power 110V Minimum OD 0.25" Model Number RDB-150 Round Pipe Sch. 40 Capacity 2" Round Tube Capacity 2.5" Shipping Dimensions (L x W x H) 60" x 44" x 77" Square Tube Capacity 2" Weight (Lbs.) 610 lbs
