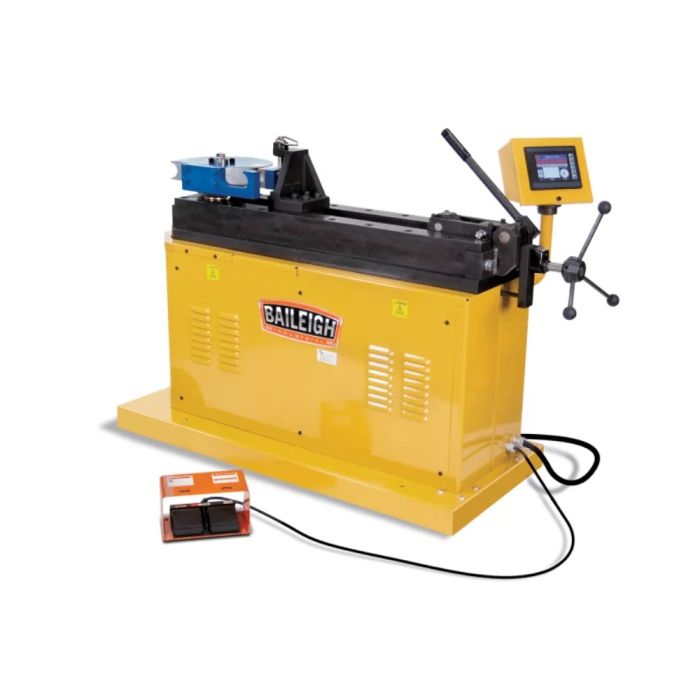

Baileigh Industrial BA9-RDB350220TS RDB-350-TS, 220V 3Ph Rotary Draw Bender

SKU
BA9-RDB350220TS
$27,699.00
Ships direct from manufacturer?
Notify me when the price drops
Add to Wish List Add to Compare
Shipping Policy Return Policy

This Tubing Bender for sale will stand up to the rigors of any shop—and save you time. The RDB-350-TS Industrial Tubing Bender bends 180° in 16 seconds. Its quick-release die system speeds up production.

We cover this pipe bender with a 1-year parts warranty. Includes lifetime technical support by phone, so you can call up a Baileigh representative anytime for project advice and troubleshooting. Questions? Give us a call at 1-920-654-5815 or fill out our contact form.

Mini Mandrel Attachment for the RDB-350 Tube Bender (optional)

Sample Tooling List

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerBaileigh Industrial
ConditionNew
UPC19907415633
Features
  • 220V 3-phase rotary-draw bender
  • 2.5 " schedule 40 pipe capacity
  • 24 " CLR maximum
  • Stores 170 bend programs
  • Capacity of 2.5” schedule 40 pipe and 3” tube with .187” wall thickness
  • 24” centerline radius maximum and bends to 360° in one shot, both left and right
  • You can program the desired angle, material springback, and bend speed for easy repeatability
  • Programmer can also keep track of rotational orientation
  • Touchscreen controller designed for user-friendly programming
  • 320° rotation of the controller lets you operate RDB-350-TS from any side of the machine
  • Internal memory can store up to 170 programs of 10 bends per program
  • Unlimited program storage/backup via the micro-SD port (standard 2CB SD card)
  • Quick-release counter die system allows you to load and unload the pipe bender quickly for high production runs
  • Accepts a rotary positioning table, available from in several lengths, to achieve accurate bends on varying planes
Warranty1 Year
TypeRotary Draw Bender
Chromoly Round Tube Wall2.5"
Input Power220 V / 3-Ph
Minimum OD0.24"
Model NumberRDB-350-TS
Round Pipe Sch. 40 Capacity2.5"
Round Tube Capacity3"
Square Tube Capacity3"
Weight1435 lbs
