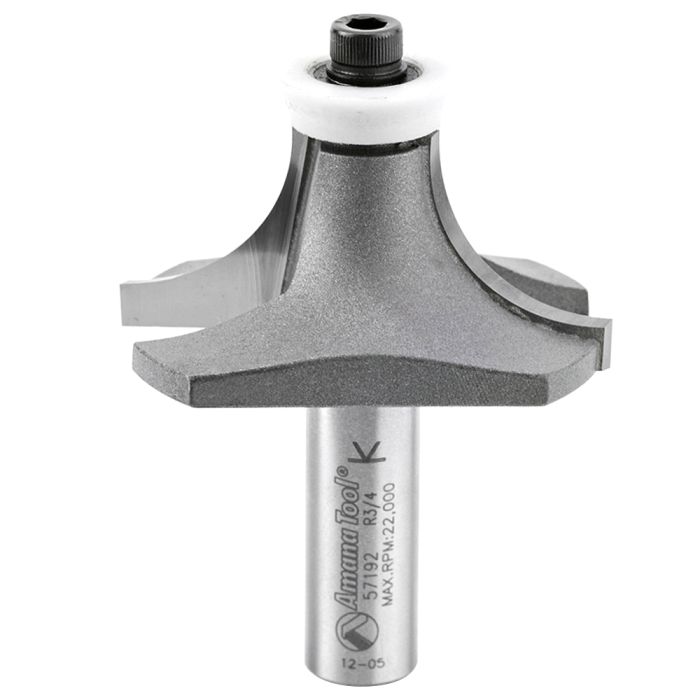

Amana Tool 57192 2-1/8" Carbide Tipped Corner Rounding Router Bit
SKU
57192
$134.54
Ships direct from manufacturer ?
This unique tool produces a true 180 degree bullnose in two passes. Make the first pass with a regular 1/4 inch x 5/8 inch steel bearing (optional). Switch to the Ultra-Glide radius bearing for the second pass. This unique bearing follows the curved surface, eliminating the flat track typical of the two-pass cut with the regular bearing. Standard steel 1/4 x 5/8 bearing - use #47712 - (order separately).
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868557192 |
| Includes |
|
| Replacement Bearing | 47768 |
| Type | Router Bit |
| A | 1 1/2" |
| Ball Bearing | Lower |
| Cutter Height(B) | 1" |
| Diameter(D) | 2 1/8" |
| Diameter(D1) | 5/8" |
| Flutes | 2 |
| Material | Carbide Tip |
| Overall Length(L) | 3" |
| Radius(R) | 3/4" |
| Shank(d) | 1/2" |
| Tool No. | 57192 |
| Diameter(D) | 2-1/8" |
|---|---|
| Cutting Height (B) | 1" |
| Shank(d) | 1/2" |
| Overall Length(L) | 3" |
| Flutes | 2 |
| Replacement Bearing | 47768 |
| Diameter(D1) | 5/8" |
| Radius(R) | 3/4" |
| A | 1-1/2" |
| Max. RPM | 22, 000 RPM |
| Style | Corner Rounding |
