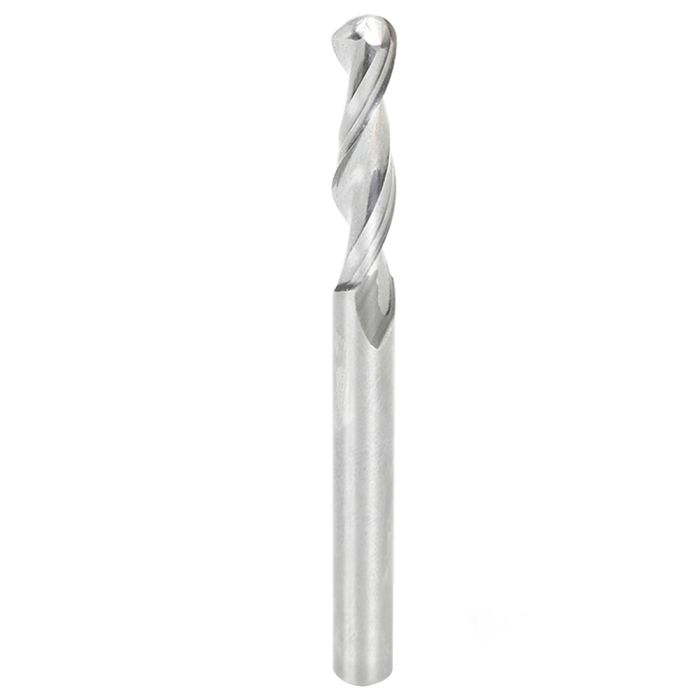

Amana Tool 46428 1/4" Solid Carbide Up-Cut Spiral Ball Nose Router Bit

SKU
46428
$62.39
Ships direct from manufacturer?
Amana Tool's high mirror-finish solid carbide up-cut spiral ball nose router bits are designed to eliminate tool marks that commonly appear when used with plastic and solid surface materials. Due to the highly polished finish and unique tool geometry, the spiral ball nose router bit delivers superior surface finish of at least 28 Ra (roughness average) in various materials. The up-cut router bits also eject chips up, to help prevent chip out on the bottom of the material. Constructed of special grade solid carbide, the Amana Tool spiral ball nose router bits last longer than traditional router bits and deliver superior cutting performance with plastics. The bits are ideal for use in a variety of applications spanning the mechanical, medical and woodworking industries.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC73868546428
Features
  • A soft plastic cardboard made with super soft super flexible PVC
ApplicationPlastic, Acrylic, Acrylic Stone, Acrylonitrile Butadiene Styrene (ABS), Aluminum, Corian, Coroplast, Fomex, High Impact Polystyrene (HIPS), High Pressure Laminates (HPL), Hydroxy-Terminated Polyether (HTPE), Low Density Polyethylene (LDPE), LubX, Non-Ferr
TypeRouter Bit
Cutter Height(B)1 1/8"
Cutting Diameter(D)1/4"
Diameter(D)1/4"
Flutes2
Length(L)3"
MaterialSolid Carbide
Overall Length(L)3"
Radius1/8"
Radius(R)1/8"
RPM35,000 RPM
Shank1/4"
Shank(d)1/4"
Tool No.46428
Suitable for Use WithCNC and Automatic Routers
Diameter(D)1/4"
Cutter Height(B)1-1/8"
Shank(d)1/4"
Overall Length(L)3"
Flutes2
DirectionUp-Cut
Max. RPM35,000 RPM
Radius(R)1/8"
