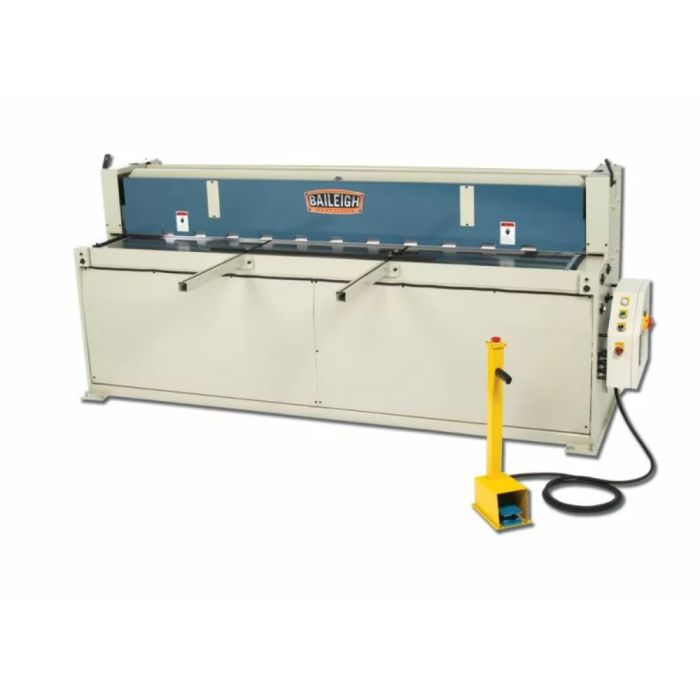

Want to cut 8-foot sheets without trimming? This 100"-wide Hydraulic Metal Shear can handle most applications. Its ground and polished steel plate frame ensures quality cuts at full capacity.
Also available in 80"-long and 120"-long versions (both with 10-gauge capacity).
Covered by a 1-year parts warranty. Includes lifetime technical support by phone from a team of reps with hands-on metalworking experience. Questions? Not sure which sheet metal shear is right for you? Call 1-920-654-5815 and talk to a Baileigh expert.
WARNING: Proposition 65 Warning for California Residents View Details
10-gauge mild steel maximum capacity and a minimum capacity of 24-gauge mild steel
7.5 hp motor runs on 220-volt 3-phase power with up to 22 strokes per minute
Powerful industrial-grade hydraulics produce smooth movements that prolong blade life
Adjustable 24" back gauge provides for repeatability
Front support arms and table guides keep the material square to the blade
3 modes on the operator console: Inch mode: Jog the control and ease the blade down to the material, Single mode: Make one cut cycle per foot pedal push, Auto mode: Continue cycling as you hold the pedal down
Comes standard with high carbon chromium blades
Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money
Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life
Fully welded steel construction helps prevent flex and maintain accuracy for many years.
