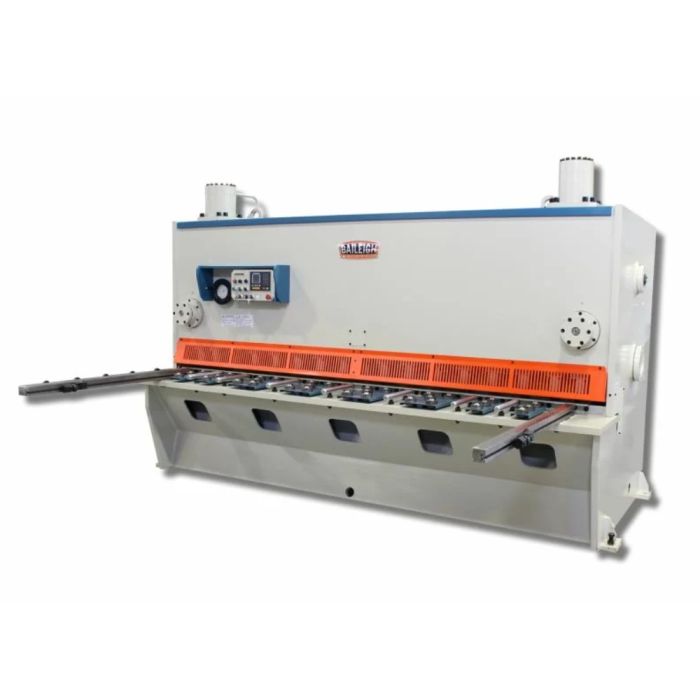

Weighing over 23,000 lbs. with a massive steel frame, this Hydraulic Shear will perform day in and day out for years. The NC controller lets you easily program the backGa.
Also available in a 96” model with ¼” maximum capacity and 120” model with ¼” maximum capacity.
You can add an optional sheet support system to this model at the time of order. Please call us for details.
Covered by a 1-year parts warranty. Includes lifetime technical support from our team of reps, all with hands-on metalworking experience. Questions? Not sure which is the best sheet metal shear for you? Call 1-920-654-5815 and talk to a knowledgeable Baileigh rep.
WARNING: Proposition 65 Warning for California Residents View Details
Maximum capacity of ½”-thick mild steel and produces 9 strokes per minute
20 hp motor runs on 220-volt 3-phase power with a 120” length for up to 10-foot sheets
Uses only the best components, like Schneider electrical parts, Rexroth hydraulics, and NOK seals from Japan
Hydraulics are in the front for simple fluid changes - Just lift the panels using the convenient handles
Squaring arms support the material and keep it square to the blade while the adjustable blade gap prevents crimping or folding - Just turn the handwheel
Roller infeed tables, mounted on the front, help you load heavy materials
Fully programmable back Ga is accurate to =/- .01mm and internal memory can hold up to 100 programs
You can adjust the raked angle for your material thickness to minimize burr and reduce strain on the hydraulics - Press a button, then pull the lever until the light goes on
Comes standard with shadow line positioner for accurate material placement
Fully welded and integrated steel plate frame eliminates vibrations and stress on the cutting process
