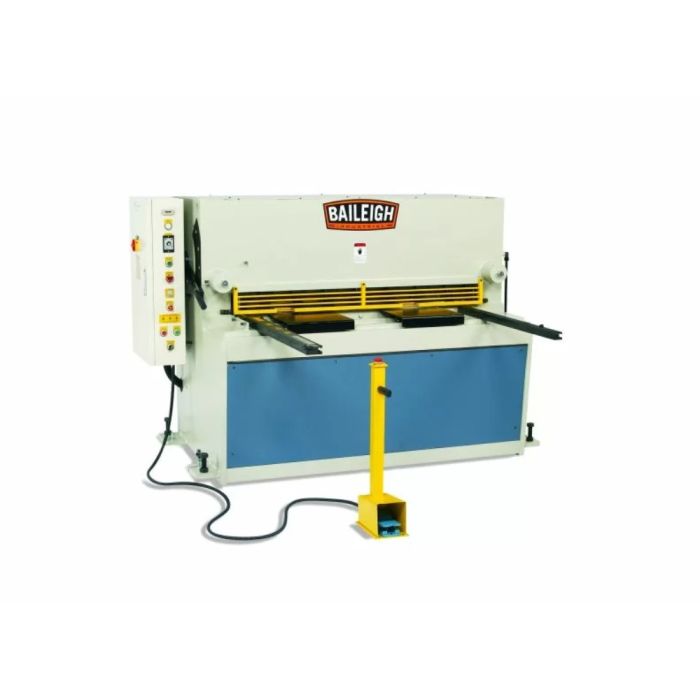

This workhorse Hydraulic Shear runs at 28 strokes per minute for fast production. Its length and capacity are perfect for those 4’ x 8’ sheets commonly found at steel suppliers.
Order this Hydraulic Metal Plate Shear for sale today
Also available in a 10-gauge model of the same length and a 80"-long, 8-gauge model.
You can add an optional sheet support system to this model. Please call us for details.
Covered by a 1-year parts warranty. Includes lifetime technical support by phone from a team of reps with hands-on metalworking experience. Questions? Not sure which is the best Sheet Metal Shear is for you? Call 1-920-654-5815 and talk to a knowledgeable Baileigh rep.
WARNING: Proposition 65 Warning for California Residents View Details
10 hp motor runs on 220-volt 3-phase power with a 52" length and 8-gauge mild steel maximum capacity
Industrial-grade hydraulic system is in the front for easy fluid changes and hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life
Shearing carriage rides on hardened ways and uses heavy-duty bearings to reduce friction
Manually adjustable 23.62" back gauge ensures precise repeatability and shadow line creates a reference line on the material so you know exactly where the cut will be.
Rigid, fully welded steel plate construction helps prevent flex and gives you many years of accuracy as well as a heavy-duty table with roller bars that slides material into the machine more easily
Side gauges keep the cut at 90° (if you so choose) without you needing to make a guiding line on the material
Switch between 3 modes as needed: Jog mode: Inching the blade down to the material, Single cycle mode: One cut for one pedal push, and Automatic cycling mode: Continuously cutting for production runs
Adjustable rake angle dial makes it easy to fit your material thickness to minimize burr and put less strain on hydraulics
Convenient blade gap adjustment lets you eliminate folding and twisting and comes standard with high carbon chromium blades
2-sided upper blades and 4-sided lower blades can be flipped and resharpened as needed, saving money
