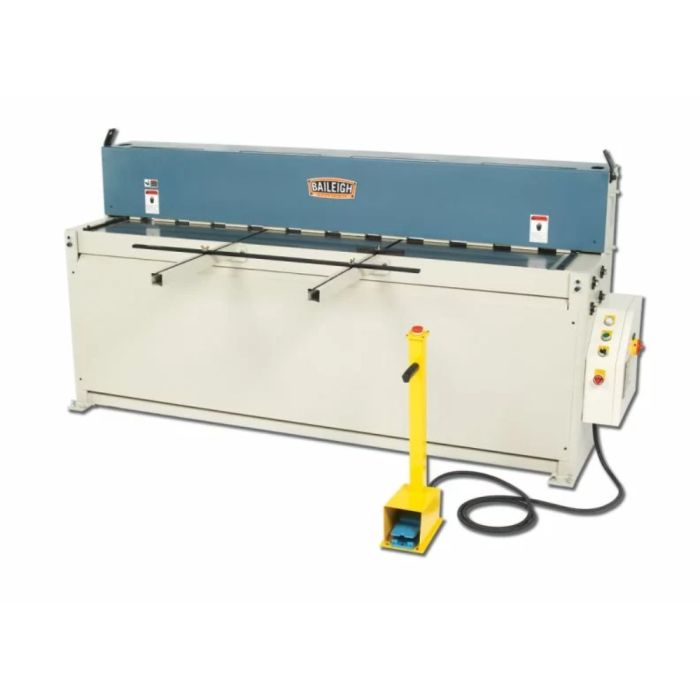

Looking to increase production? This Hydraulic Shear can produce 24 strokes per minute. Built with a fully welded steel frame, the SH-8010 will withstand years of full-capacity use.
Also available in 60"-long and 100"-long versions (both with 10 gauge capacity).
Questions? Not sure which Sheet Metal Shear is right for you? Call 1-920-654-5815 and talk to a Baileigh expert.
WARNING: Proposition 65 Warning for California Residents View Details
10-gauge mild steel maximum capacity and minimum capacity of 24-gauge mild steel
Powerful industrial-grade hydraulics produce smooth movements that prolong blade life
5 hp motor runs on 220-volt 3-phase power with adjustable 24" back gauge helps ensure repeatability
Front support arms and table guides keep the material square to the blade
3 modes on the operator console: Inch mode: Jog the control and ease the blade down to the material, Single mode: Make one cut cycle per foot pedal push, Auto mode: Continue cycling as you hold the pedal down
Comes standard with high carbon chromium blades
Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money
Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life
Rigid steel plate construction minimizes flex and maintains accuracy
