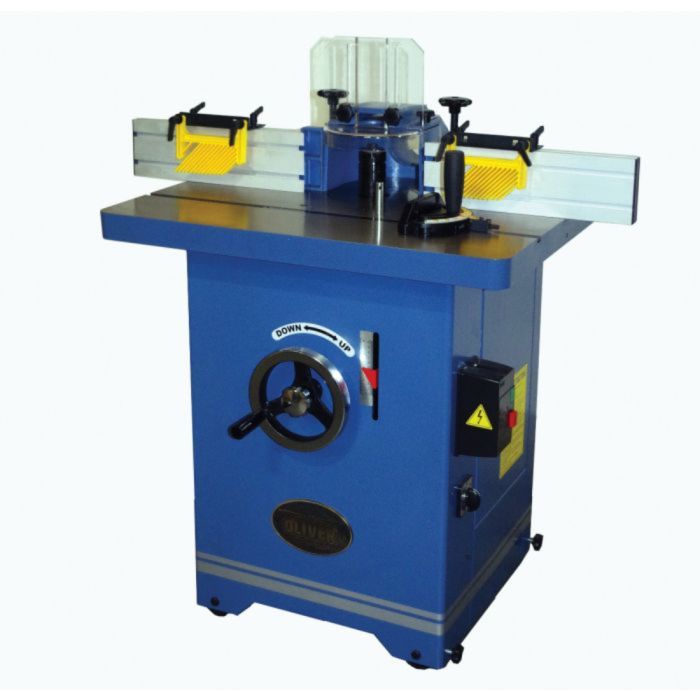

Oliver Machinery 10047.001, 3HP 1Ph Shaper

SKU
10047.001
$3,499.99
Ships direct from manufacturer ?

Large cast iron table is precision ground table to provide a solid work surface.

Table features pre-drilled and threaded holes for optional power feeder.

Full cabinet stand includes wheels and locks.

1-1/4” interchangeable spindle included, other optional sizes available.

Optional router bit collets available.

Four spindle speeds for versatility

Belt changes are quick and convenient with unique tensioner.

Poly V-belt drive for smoother operation.

Spindle reverses for more options with each set-up.

Four inches of spindle travel allows more set-up options.

Starting pin for irregular shapes included.

Fence is independent and includes micro adjustments.

Adjustable hold downs add to a safer operation.

Extra large handwheel for easy and quick height adjustment.

Miter gauge included.

Magnetic controls for added safety.

Powerful TEFC motor in 3HP or 5HP to meet your needs. (1Ph Only).

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerOliver Machinery
ConditionNew
Motor Phase1 Ph
TypeShaper
Spindle Speeds4,000, 6,000, 8,000, 10,000 RPM
Spindle Diameter1-1/4"
Verticle Spindle Travel4"
Spindle DirectionReversible
Under Nut Capacity4" with 1-1/4" Spindle
Table Opening6-1/4"
Large Insert Opening4-5/16"
Small Insert Opening2-1/2"
Table Height34-3/8"
Table Size32" x 26"
T-Slot3/4" x 3/8"
Fence Size (2)4-13/16" x 16"
Dust Port Diameter4"
Minimum CFM800 CFM
Motor 1Ph3HP, 220V 1Ph only (8 Amp)
Weight473 lbs
