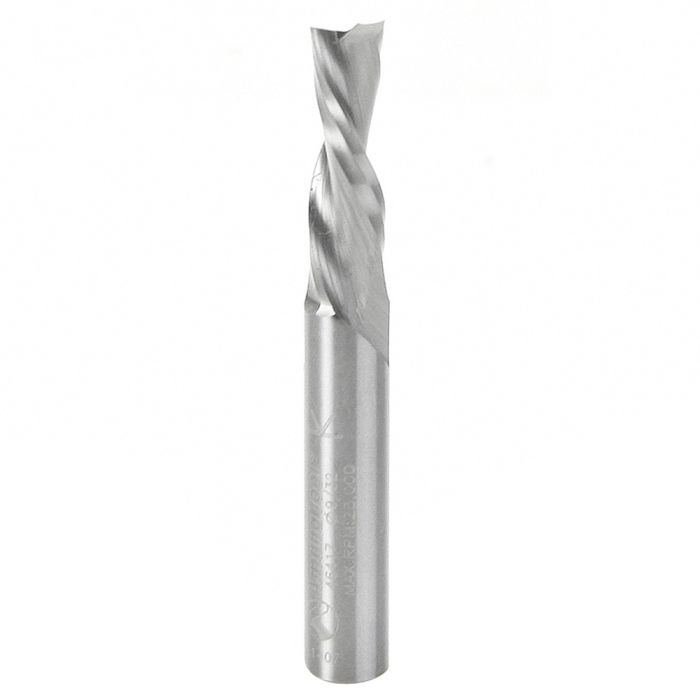

Amana Tool 46417 9/32" Solid Carbide Down-Cut Spiral Plunge Router Bit

SKU
46417
$60.21
Ships direct from manufacturer?
Spiral-flute bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean accurate cut while the augering action clears chips from the cut. The ‘Down-Cut’ cuts from the surface down leaving a smooth edge at the surface. Special unique carbide grade increased clearance geometry and razor-sharp cutting edges with polished flutes provide a superior finish and longer tool life especially in abrasive materials. Great for production settings and excellent for creating grooves and dado cuts in particleboard, plywood and laminate. Primarily used on CNC machines and other automatic routers. Can be used with handheld and table-mounted portable routers.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC73868546417
Features
  • The Down-Cut cuts from the surface down leaving a smooth edge at the surface
  • Great for production settings and excellent for creating grooves and dado cuts in particleboard, plywood and laminate
  • Primarily used on CNC machines and other automatic routers
  • Can be used with handheld and table-mounted portable routers
TypeRouter Bit
Ball BearingNo
Cutter Height(B)1"
Cutting Depth1"
Diameter(D)9/32"
Flutes2
Length(L)2 1/2"
MaterialSolid Carbide
Overall Length(L)2 1/2"
Shank5/16"
Shank(d)5/16"
Tool No.46417
Diameter(D)9/32"
Cutter Height(B)1"
Shank(d)5/16"
Overall Length(L)2-1/2"
Flutes2
Plunge TypeSpiral Plunge
Max. RPM28,000 RPM
DirectionDown-Cut
