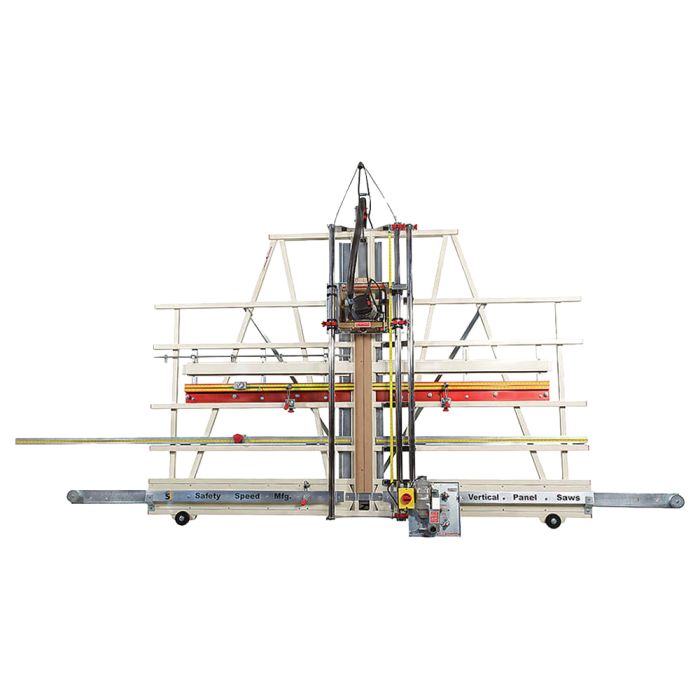

Safety Speed Cut SR5UA 120V Panel Saw and Router Combo

SKU
SR5UA
$9,129.00
Ships direct from manufacturer ?

The SR5UA saw router combination machine is a fully loaded solution for high production cutting and routing. The unique design of this unit allows for accurate cutting and V-grooving of ACM (aluminum composite material) panels. Features a unique floating router with a nylon guide guaranteeing a consistent depth of cut. The saw can also be switched over to a router in less than one minute. It also features a dust system in place to collect debris while cutting and routing.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerSafety Speed Cut
ConditionNew
Features
  • 10' Welded steel frame
  • Chrome plated 1 3/4" guide tubes
  • 8 Nylatron roller bearing systems
  • Adjustable vertical and horizontal rulers
  • Quick change from vertical and horizontal cutting
  • Thin material pressure guard
  • Solid aluminum material rollers.
  • Counterweight system
  • Adjustable floating router head
  • MID-WAY FENCE with stop
  • Backerboard
  • 4 Material clamps
  • 2 Blind dado stops
  • Wheels
  • Fixed Stand
  • Pair of extensions adding an additional 22" to each side
  • Left and right quick stop gauges
  • MID-WAY Fence flip stop
  • Dust hood and hose kit
  • Hold down bar
  • Specialty saw blade and router bit for v-grooving
  • Thin material pressure guard for accurately processing thin material
  • Left (8’) and right (5’) quick stop gauges
  • MID-WAY Fence for processing panels at waist level
  • 860NRTCG saw blade
Video

TypePanel Saw / Router Combo
Dimension124" × 17" × 92"
Frame Length120"
Maximum Cutting Height62"
Maximum Rip CutUnlimited
Maximum Cutting Thickness1 3/4"
Cutting Accuracy (Straight / Square)1/64"
Blade Diameter8"
Saw Motor Amperage13 Amp
Motor Voltage (Router / Saw)120 V
Router Motor Amperage15 Amps
Motor Horsepower (Saw / Router)3 HP
Router Motor TypeVariable Speed
Parts Warranty1 Year
Saw Motor TypeWorm Drive
