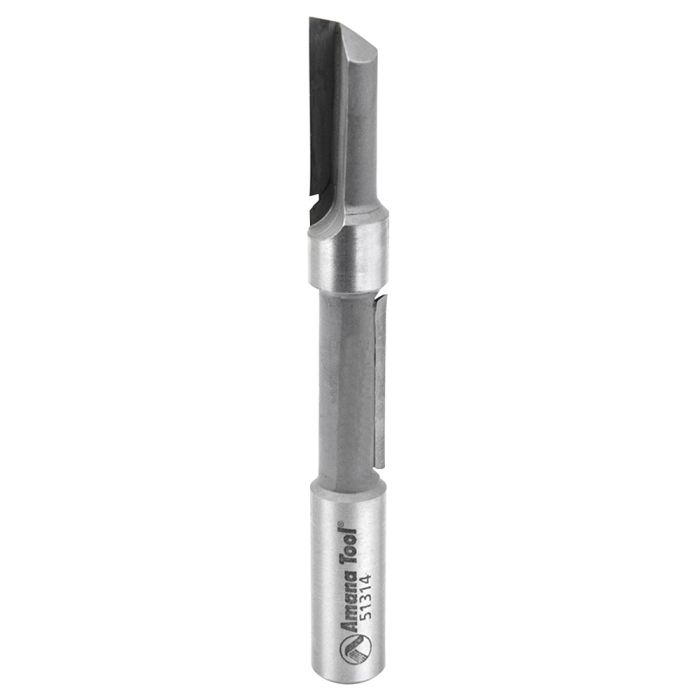

Amana Tool 51314 1/2" Carbide Tipped Stagger Tooth Plunge Panel Router Bit
SKU
51314
$38.39
Ships direct from manufacturer ?
This version of the panel pilot bit has a stagger-tooth configuration for fast, clean cuts, coupled with a solid pilot between the cutting edges. Designed specifically for the caravan, star wagon, trailer, coach, mobile/motor home, RV-manufacturing industries and shed manufacturers to cut openings in ceilings and sidewalls, it can be used in any setup that has a template between the materials to be cut.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868551314 |
| Includes |
|
| Type | Router Bit |
| B1 | 1 1/8" |
| B2 | 1 3/16" |
| Ball Bearing | No |
| Cutter Height(B) | 2 13/16" |
| Diameter(D) | 1/2" |
| E | 3/8" |
| F | 1/2" |
| Flutes | Stagger |
| Material | Carbide Tip |
| Shank(d) | 1/2" |
| Tool No. | 51314 |
| Diameter(D) | 1/2" |
|---|---|
| Cutter Height(B) | 2-13/16" |
| Shank(d) | 1/2" |
| Overall Length(L) | 4-1/4" |
| Flutes | Stagger |
| Cutter Height(B1) | 1-1/8" |
| Cutter Height(B2) | 1-3/16" |
| E | 3/8" |
| F | 1/2" |
| Style | Stagger Tooth Plunge Panel |
