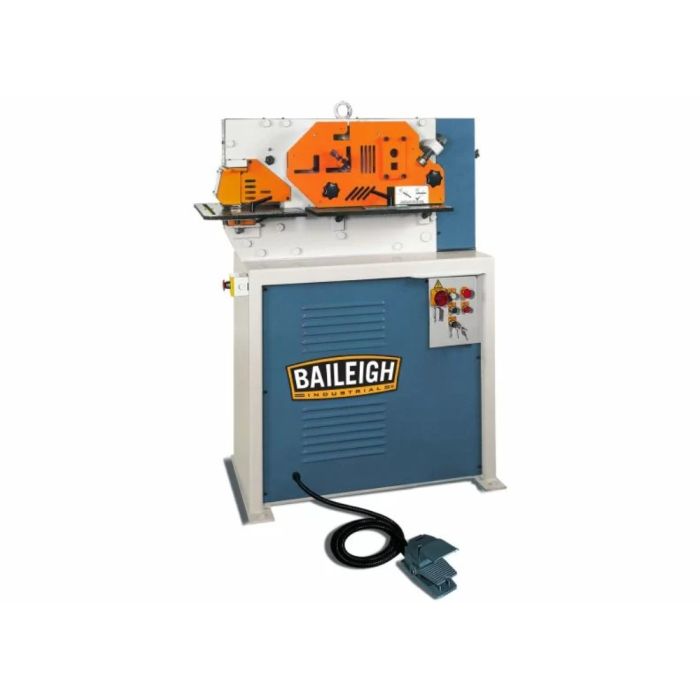

Baileigh Industrial BA9-1007756 SW-441, 220V 1Ph 44 Ton 4 Station Hydraulic Ironworker

SKU
BA9-1007756
$11,219.00
Ships direct from manufacturer ?

This pivot-style hydraulic ironworker combines a compact footprint with a budget-friendly price to meet the needs of small fabrication shops. The SW-441 includes just about every feature you’d want to help you shear and punch smoothly.

Why choose the SW-441 over similar machines?

This ironworker’s small footprint will fit into tight shop spaces and just about any job site.

The SW-44 comes standard with features that you won’t find on most ironworkers in this price range, like a large table with product guides and a foot pedal.

Quick-release punch and die system makes changeovers faster and more efficient.

CE certifications vouch for the machine’s exacting quality and safety standards.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerBaileigh Industrial
ConditionNew
Features
  • 220V 1-phase power.
  • 44 tons of force at 4 stations.
  • 6.75" throat depth.
  • Includes .75" punch and die.
  • Runs on 220-volt single-phase power and will work at virtually any site in North America.
  • Delivers 44 tons of force for punching and shearing.
  • Stations for 4 main functions: flat-bar shearing, angle cutting, section cutting for multiple profiles, and punching.
  • Runs at up to 23 cycles per minute, increasing the speed of your projects.
  • Product hold-downs for all stations ensure clean, straight shearing.
  • Large reference tables accommodate bigger pieces of material and easily pull out from the machine, so that you can get the punch closer to angle iron.
  • Product guides make repeatability a cinch when you’re setting up production runs.
  • Large-button control panel and foot pedal punch control are conveniently located.
  • Offers adjustable stroke control, with upstrokes and down-strokes for the punching and shearing sections and a maximum stroke length of 1.125".
  • Accepts optional tooling available from Baileigh Industrial, such press brake attachments, to make this machine even more versatile.
Horsepower3 HP
Warranty1 Year
TypeHydraulic Ironworker
Angle Shear Max Capacity 1/2"3 x 3
Angle Shear Work Height40"
Blade Length13.87"
Flat Bar Shear Max Capacity7.87" x .5"
Flat Bar Shear Rating (Tons)44 Tons
Flat Bar Shear Work Height42.32"
Input Power220V / 1-phase
Model NumberSW-441
Punch Max Capacity0.75" x 0.625"
Punch Rating (Tons)44 Tons
Rating (Tons)44 Tons
Shipping Dimensions (L x W x H)60" x 48" x 71"
Stroke Length1.125"
Throat Depth6.88"
Weight (Lbs.)1530 lbs
