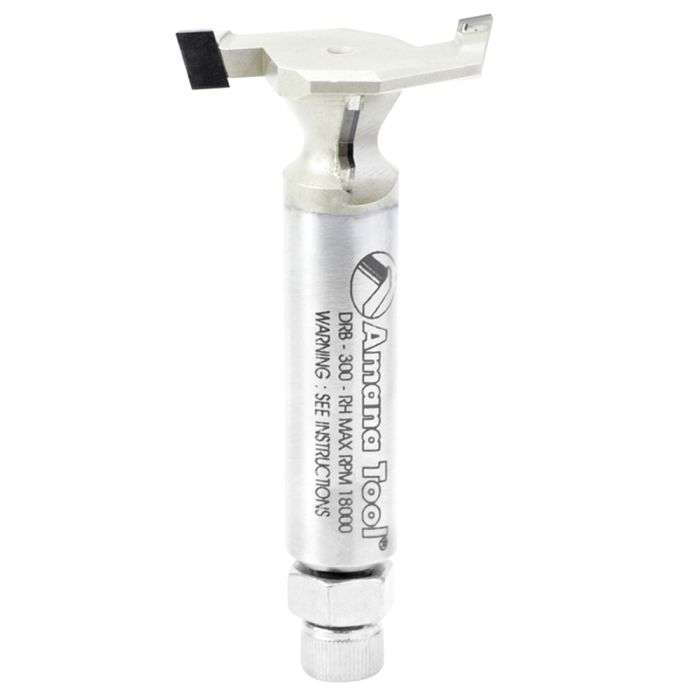

Amana Tool DRB-300-RH 1-3/8" Right Hand Polycrystalline Diamond PCD Tipped T-Slot CNC Router Bit

SKU
DRB-300-RH
$373.04
Ships direct from manufacturer ?

Diamond is the hardest material on the earth. Polycrystalline diamond (PCD) tooling is manufactured in a high-temperature and high-pressure laboratory that fuses diamond particles onto a carbide substrate, which allows the diamond to be brazed onto a tool body. If we’re looking for the ultimate in tooling we’ve found it! Amana Tool's PCD tipped t-slot CNC router bits will groove a wide variety of tough abrasive materials including composites, particleboard, MDF (both raw or with melamine), veneer and hardwoods. The cutting edge lasts much longer than carbide for extremely long life. T-Slot diamond tipped router (standard T-slot). Re-sharpen one to two times.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC73868509300
Features
  • Harder cutting edge provides higher resistance to wear
  • Cut thousands of feet more than carbide without changing tool saving setup time
  • Optimized machine tool efficiency
  • Quality of finish is often significantly improved
ApplicationAluminum, Aluminum Composites, Aluminum Composite Material (ACM), Composites, Hardwood, MDF, Melamine, Particle Board
TypeRouter Bit
Type CNC Router Bit
Diameter (D) 1 3/8"
Diameter (D1) 3/8"
Cutting Height (B) 1/4"
Cutting Height (B1) 1/16"
Shank (d) 1/2"
Overall Length (L) 2 3/8"
Maximum (RPM) 18,000 RPM
Rotation Right Hand
Material Polycrystalline Diamond (PCD) Tipped
Style T-Slot
Cutters 2+1
